User's Manual

17
 Use the left, right, up and down keys to move around the keyboard.
 Use the select key to input the highlighted character/number.
 Use the back button to exit the keyboard.
Choosing between Modes
You can select between AP Mode or Client Mode.
 AP Mode makes the MWA2 Wireless Adapter an Access Point that your
mobile device can connect to directly.
 Client Mode requires that the MWA2 Wireless Adapter connect to another
Access Point (which your mobile device should also connect to in order to
communicate with the MWA2 Wireless Adapter).

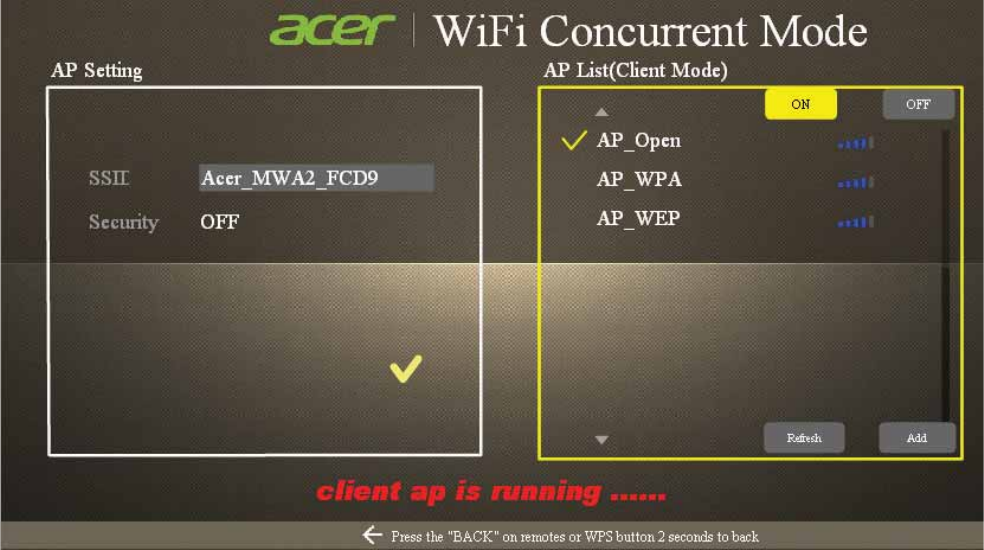

To change the Wi-Fi mode, switch Client Mode (right hand column) ON or
OFF. When OFF, AP Mode is activated. When ON, Client Mode is activated.
Although the ON and OFF options are next to each other, you may have to
use your control’s up/down arrows to select between them. See “Navigating
the Network Setting Screen” on page 16 for more information on navigating
the Settings screen.
