Manual

Rev: 12.05.2014
Page 8
Solera® Manual Awning - Pull Strap Style Owner's Manual
I
J
K
L
M
N
O
P
Q
R

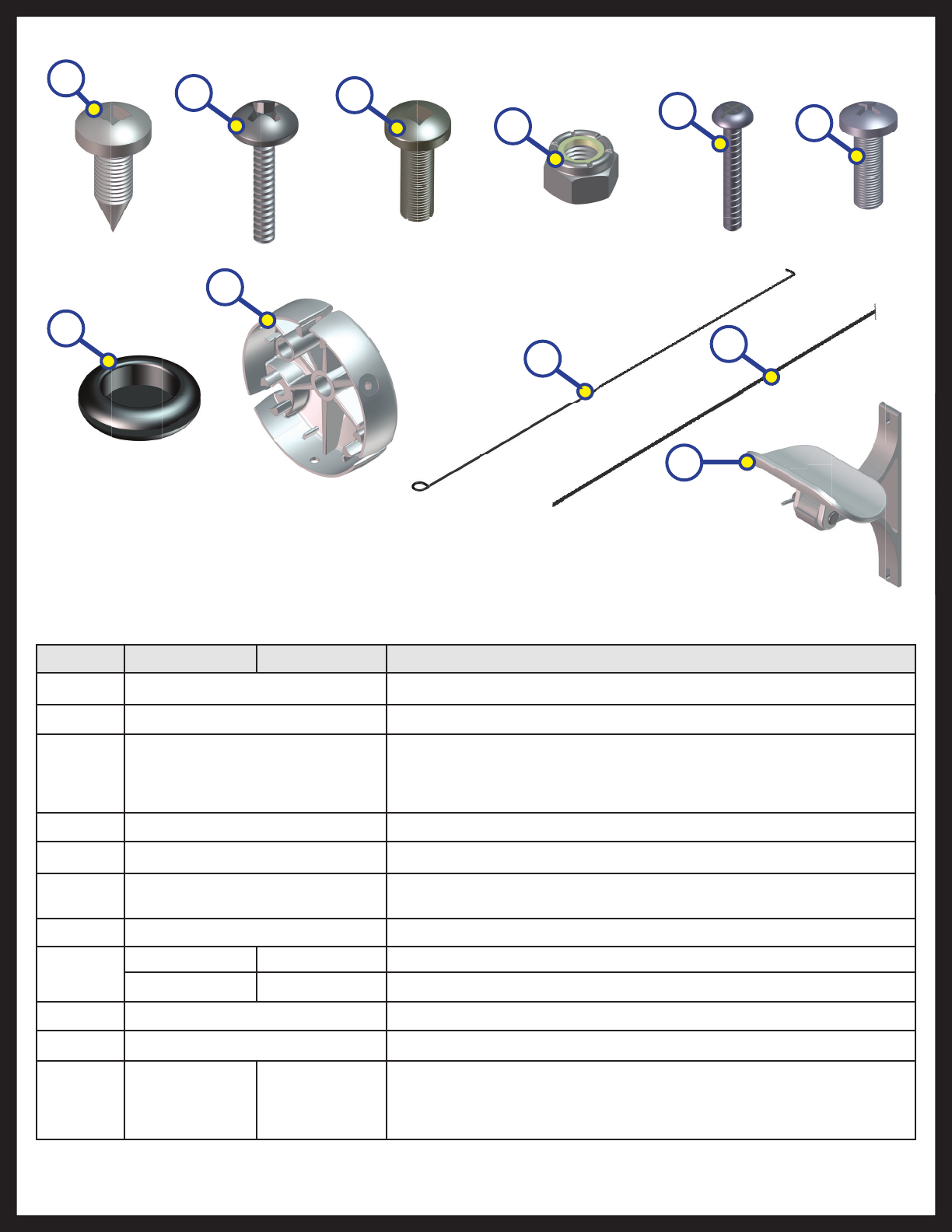

Callout White Part # Black Part # Description
H 299419 Screw - # 8 - 15 X ½ PNH ZN SQ A ST
I 266156 #6 X ½ ZN Screw (fastener for head covers, 6 per cover)
J 299630
#8 Wax Screw
NOTE: For 6' awnings at the idler head to connect roll bar to the
shaft.
K 118043 Nut ⁄-18 Nylock ZN ST (head to arm)
L 266148 Screw ⁄-18 X 2-1/4 (head to arm)
M 266155
Screw #8-32 x ½ PH PNH MACHG ZN FTHD (back cover to
mount)
N 275071 Rubber Grommet (for manual override opening)
O
3334291 3334292 End Cap for Manual Drive Head
3334301 3334302 End Cap for Manual Idler Head
P 281080 Pull Rod
Q 292794 Manual Pull Strap Replacement
R 289373 289374
Awning Center Support Assembly
NOTE: Only required for Solera Awnings greater than 21' in
length.
H
