Solera® Manual Awning - Pull Strap Style Owner's Manual
SOLERA
®
MANUAL AWNING

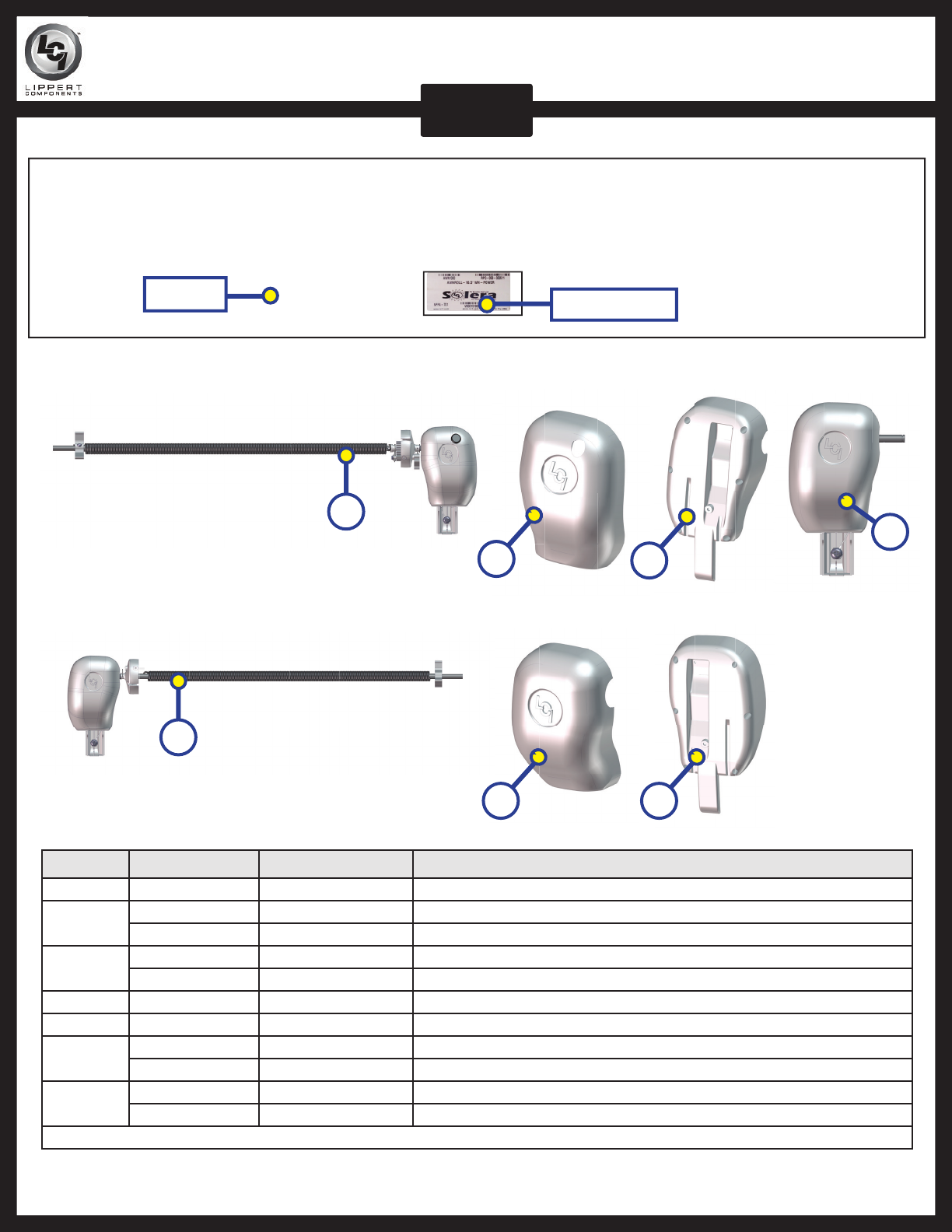

PULL STRAP ASSEMBLY
SOLERA
®
MANUAL AWNING
PULL STRAP COMPONENTS
AWNINGS
Callout White Part # Black Part # Description
A 271181 272067 Drive Head Assembly
B
266151 266161 Drive Head Front Cover
289557 289560 Drive Head Front Cover (NEW)
C
266152 266162 Drive Head Rear Cover
289558 289561 Drive Head Rear Cover (NEW)
D 266147* 273479* Idler Side Head
E 272397 285147 Idler Head Assembly
F
266153 266163 Idler Head Front Cover
289563 289566 Idler Head Front Cover (NEW)
G
266154 266164 Idler Head Rear Cover
289564 289567 Idler Head Rear Cover (NEW)
NOTE: * Only used on 6' awning assemblies.
B
C
F G
D
A
E
Roll bar
Variant Code Information
The variant code on Lippert products can assist LCI customers in obtaining additional information about the
product and its components. For replacement part information, locate the variant code as outlined below and
call LCI customer service at 574-537-8900.
Variant Code
