Rev: 11.21.2014

Page 13

IN-WALL™ Slide-out Owner's Manual

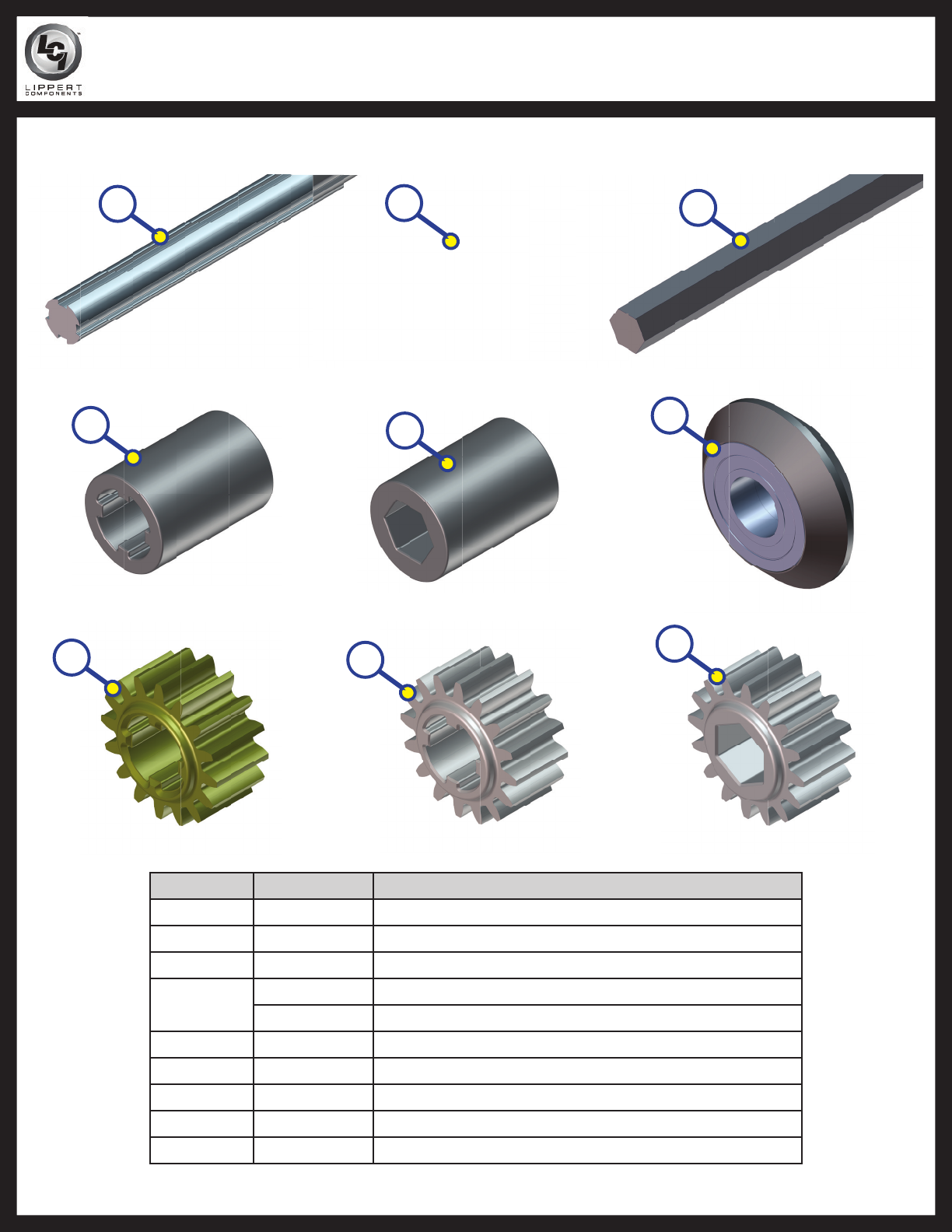

IN-WALL™ SLIDE-OUT COMPONENTS

F

D

H

A

B

C

E

I

G

Callout Part # Description

A 238462 Aluminum Torque Shaft

B 259065 Steel Torque Shaft

C 295873 Hex Torque Shaft

D

238461 Coupler - Old Style (for 229466 Motor)

238461 Coupler - New Style (for 236575 Motor)

E 285083 Hex Coupler

F 292801 V-Roller Assembly

G 238893 Spur Gear

H 292435 Copper Infused Spur Gear

I 285085 Hex Spur Gear
