Rev: 11.21.2014

Page 12

IN-WALL™ Slide-out Owner's Manual

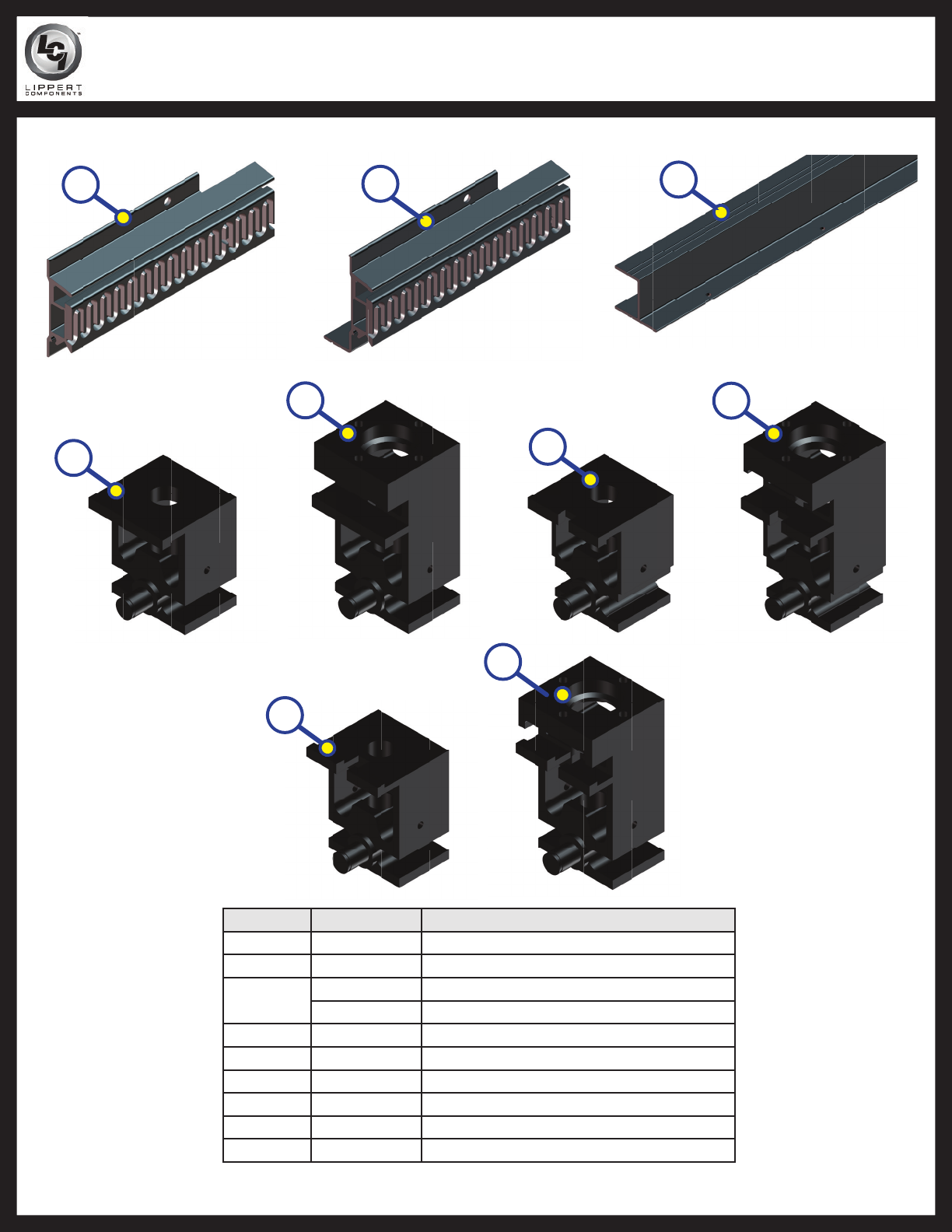

IN-WALL™ SLIDE-OUT COMPONENTS

A

C

D

E

B

Callout Part # Description

A 254569 Upper Gear Rack

B 254570 Lower Gear Rack

C

240411 H-Column, Black

238457 H-Column, White

D 239365 Lower Bearing Block

E 239366 Upper Bearing Block

F 335632 Lower Bearing Block (Hex Shaft)

G 335633 Upper Bearing Block (Hex Shaft)

H 338237 Lower Bearing Block (Steel Shaft)

I 338241 Upper Bearing Block (Steel Shaft)

F

G

H

I
