Chapter 4
Advanced Configuration
25
Wireless-N ADSL2+ Gateway

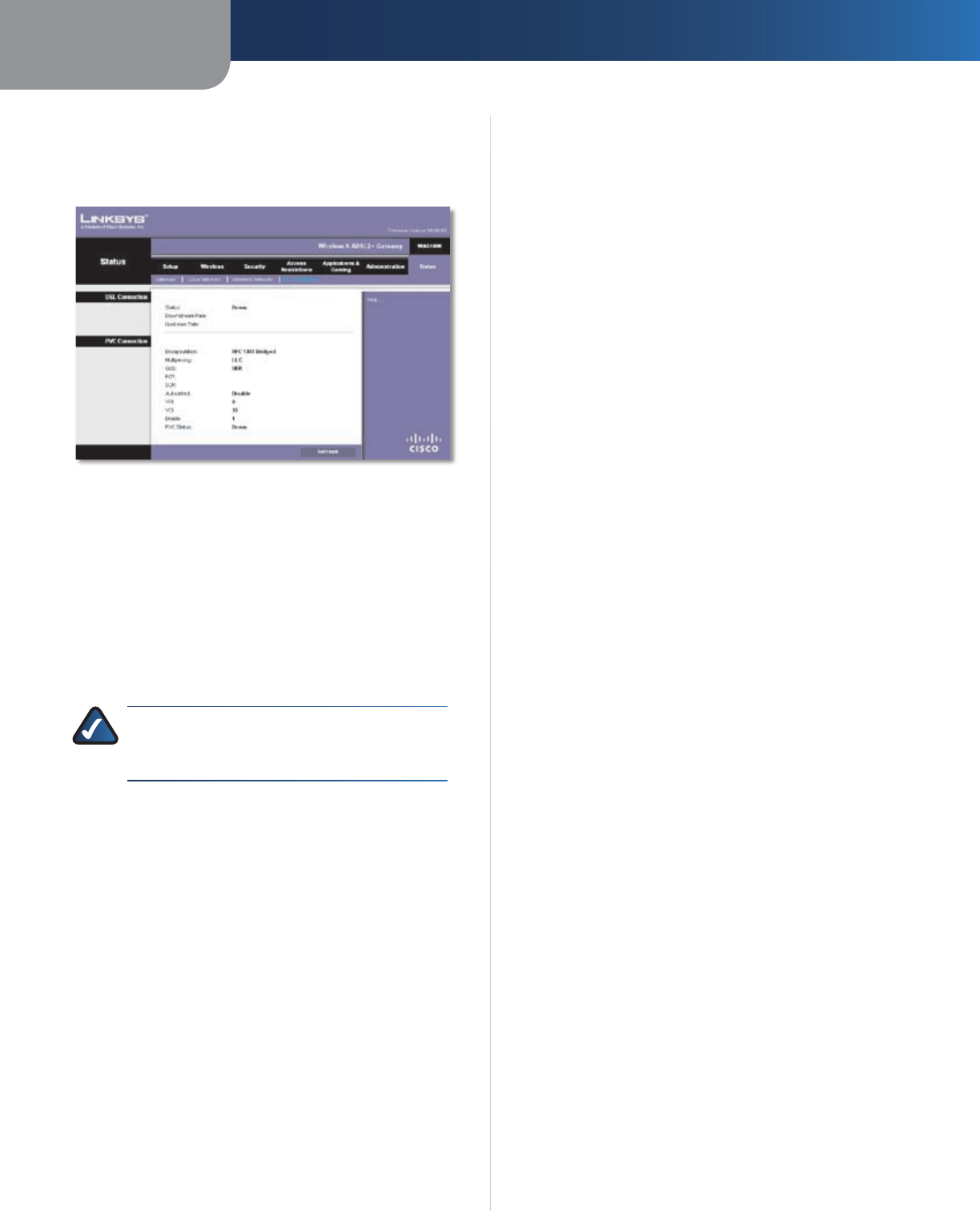

Status > DSL Connection
The DSL screen displays information about your DSL
connection.
Status > DSL Connection
DSL Connection
Status The status of the DSL connection is displayed.
Downstream Rate The download speed of traffic from
the Internet to the Gateway is displayed.
Upstream Rate The upload speed of traffic from the
Gateway to the Internet is displayed. For ADSL connection,
the Upstream Rate is typically 25% of the Downstream
Rate.
NOTE: The Downstream and Upstream Rates are
affected by distance from and configuration of
the DSL central office.
PVC Connection
Encapsulation The Encapsulation setting selected on
the Basic Setup screen is displayed.
Multiplexing The Multiplexing setting selected on the
Basic Setup screen is displayed.
QoS The QoS method selected on the Basic Setup screen
is displayed.
PCR The PCR value entered on the Basic Setup screen is
displayed.
SCR The SCR value entered on the Basic Setup screen is
displayed.
Autodetect The Autodetect setting selected on the Basic
Setup screen is displayed.
VPI The VPI value entered on the Basic Setup screen is
displayed.
VCI The VCI value entered on the Basic Setup screen is
displayed.
Enable The number of Permanent Virtual Circuits (PVC)
is displayed.
PVC Status The status of the PVC is displayed.
