Owner's manual

Chapter 4
Advanced Configuration
6
Wireless-N ADSL2+ Gateway
Connect on Demand - Max Idle Time You can configure
the Gateway to cut the Internet connection after it has
been inactive for a specified period of time (Max Idle Time).
If your Internet connection has been terminated due to
inactivity, Connect on Demand enables the Gateway to
automatically re-establish your connection as soon as you
attempt to access the Internet again. To use this option,
select Connect on Demand. In the Max Idle Time field,
enter the number of minutes you want to have elapsed
before your Internet connection terminates. The default
Max Idle Time is 5 minutes.
Keep Alive - Redial Period If you select this option,
the Gateway will periodically check your Internet
connection. If you are disconnected, then the Gateway
will automatically re-establish your connection. To use
this option, select Keep Alive. In the Redial Period field,
you specify how often you want the Gateway to check
the Internet connection. The default Redial Period is
30 seconds.
RFC 1483 Routed
If you are required to use RFC 1483 Routed, then select
RFC 1483 Routed.

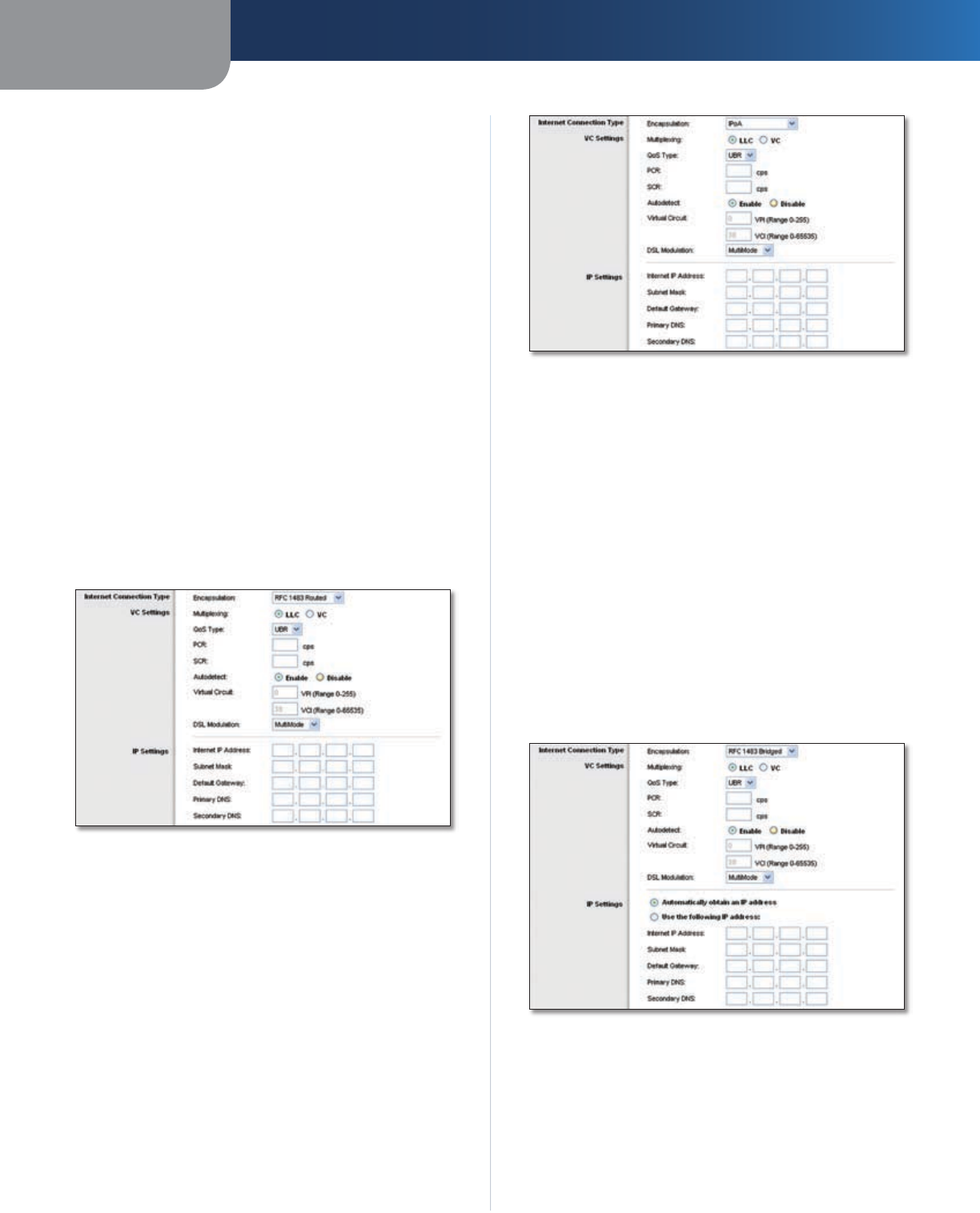

Internet Connection Type > RFC 1483 Routed
IP Settings
Your ISP provides these settings.
Internet IP Address Enter the Gateway’s IP address, as
seen from the Internet.
Subnet Mask Enter the Gateway’s Subnet Mask, as seen
from the Internet (including your ISP).
Default Gateway Enter the IP address of the ISP server.
Primary (Required) and Secondary (Optional)
DNS Enter the DNS (Domain Name System) server IP
address(es) provided by your ISP. At least one is required.
IPoA
If you are required to use IPoA (IP over ATM), then select
IPoA.
Internet Connection Type > IPoA
IP Settings
Your ISP provides these settings.
Internet IP Address Enter the Gateway’s IP address, as
seen from the Internet.
Subnet Mask Enter the Gateway’s Subnet Mask, as seen
from the Internet (including your ISP).
Default Gateway Enter the IP address of the ISP server.
Primary (Required) and Secondary (Optional)
DNS Enter the DNS (Domain Name System) server IP
address(es) provided by your ISP. At least one is required.
RFC 1483 Bridged
If you are required to use RFC 1483 Bridged, then select
RFC 1483 Bridged.
Internet Connection Type > RFC 1483 Bridged
IP Settings
Select Automatically obtain an IP address if your ISP
says you are connecting through a dynamic IP address.
If you are required to use a permanent (static) IP address
to connect to the Internet, then select Use the following
IP Address. Your ISP provides the settings needed for the
following fields:
