2-7
Linksys IP Phone Administrator Guide
Firmware Version 5.1
Chapter 2 Getting Started
Linksys 900 Series IP Phones

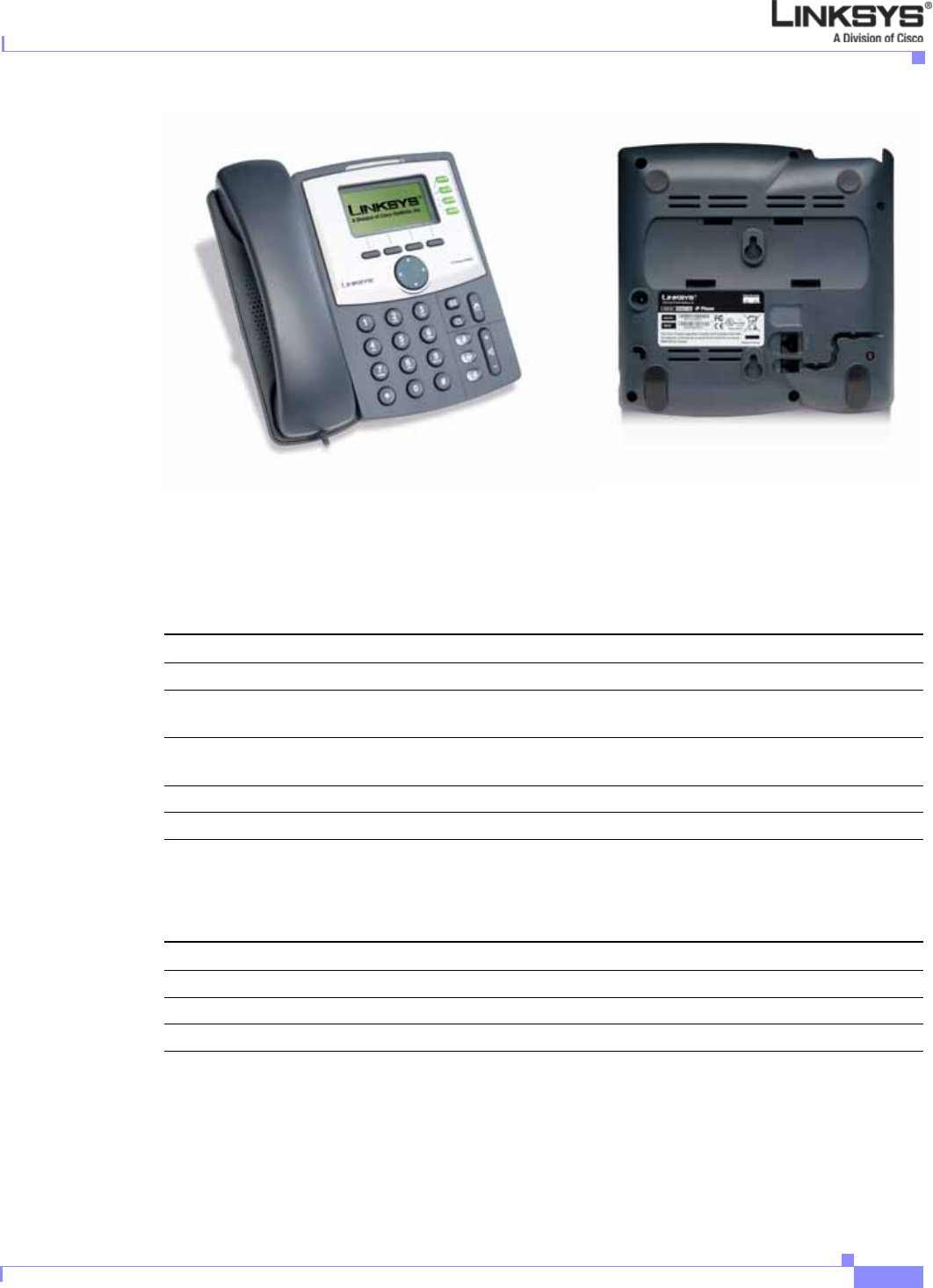

Figure 2-5 SPA941
The following tables describe the status indicators and controls on the front of the device and the ports
on the back panel of the device.
Front Panel
Back Panel
SPA942
The SPA942 is similar to the SPA941, but provides two Ethernet ports for connecting to the LAN and
supports Power over Ethernet (see
Figure 2-6). The PA100 power supply must be ordered separately if
you are not using a PoE switch. See the table for SPA941.
Feature Function
LCD display Lists device status and configuration options.
Telephone keypad Enters numeric digits for initiating a call or for entering
configuration information.
Navigation button Scrolls between display and configuration options in the LCD
display.
Soft keys 1-4 Selects options on the LCD display.
Line status indicators 1-4 Displays status of each extension.
Port Function
Phone jack Connects to the handset.
Ethernet ports Connects to the SPA9000 through a local switch.
Power Connects to the 5-volt power supply.
