Chapter 2 Getting Started
Linksys 900 Series IP Phones
Back Panel
SPA922
The SPA922 is similar to the SPA921, but provides Power over Ethernet (PoE) and an extra Ethernet port
for connecting another device to the LAN (see
Figure 2-3). The SPA100 power supply must be ordered
separately if you are not using a PoE switch.

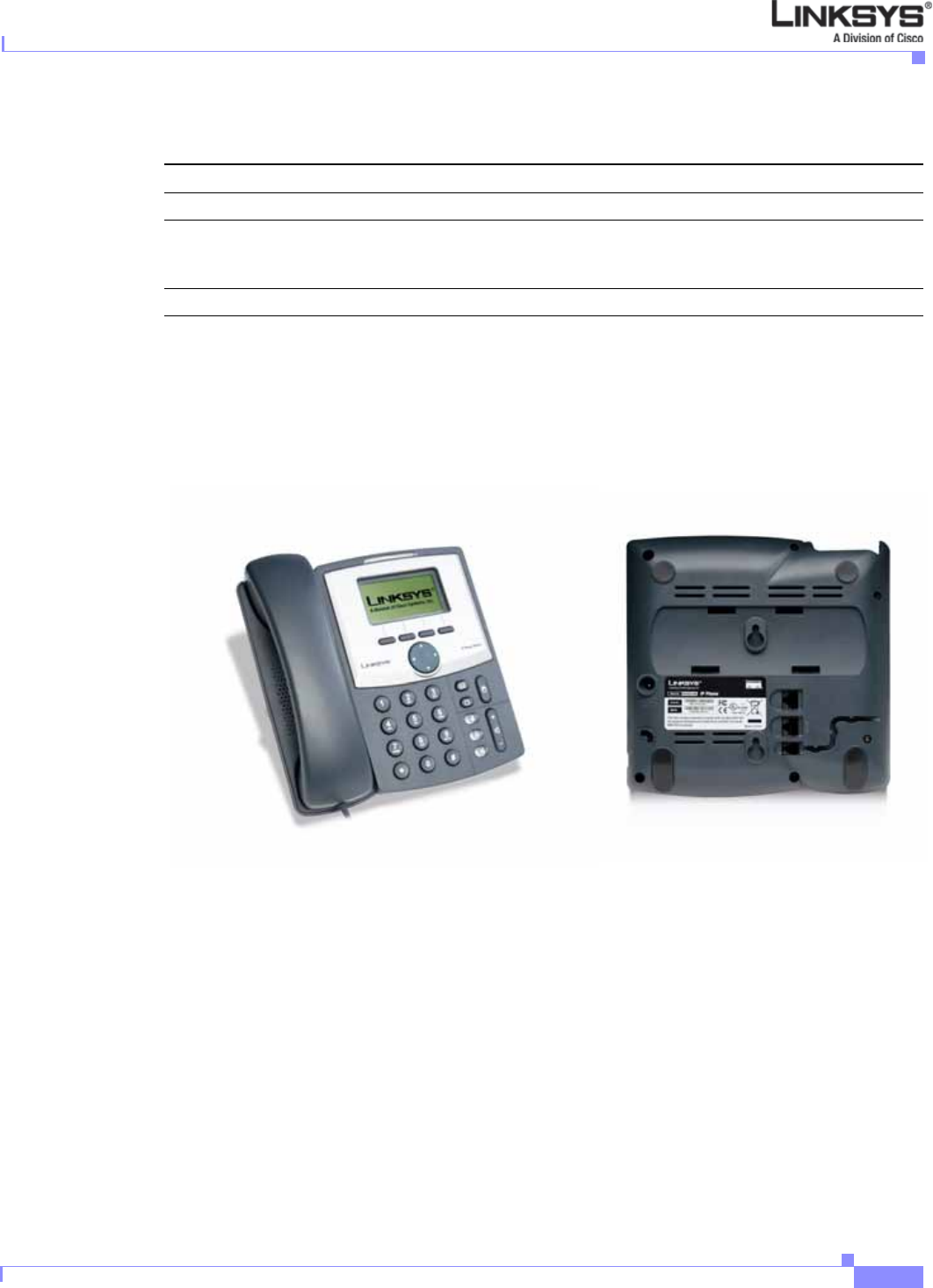

Figure 2-3 SPA922
SPA932
The SPA932 is a 32-button attendant console for the SPA962, providing 32 three-color (red, green, and
amber) programmable LEDS, with support for Broadsoft Busy Lamp Field and Asterisk Line
Monitoring (see
Figure 2-4). The SPA932 attaches to the SPA962 with the attachment arm provided (not
shown). It obtains power directly from the SPA962 and does not require a separate power supply. Two
SPA932 units can be attached to a single SPA962 to monitor a total of 64 separate lines.
Port Function
Phone jack Connects to the handset.
Ethernet ports Connects to the SPA9000 through a local switch. The SPA922 has
two ports. Use the other port to connect to a PC or other LAN
device.
Power Connect to the 5-volt power supply.
