User manual

47
Appendix C PC And Server Configuration
Linksys
The following instructions assume that:
• YouareusingWindowsXP
• YouareconnectingtoaWindows2000serverforauthentication.
• You already have a login (User-name and password) on the Windows
2000 server.
Client Certificate Setup
1. Connect to a network that doesn’t require port authentication.
2. Start your Web browser. In the Address box, enter the IP address of the
Windows 2000 Server, followed by “/certsrv”, e.g,
“http://192.168.0.2/certsrv”
3. You will be prompted for a user name and password. Enter the User name
and Password assigned to you by your network administrator, and click OK.

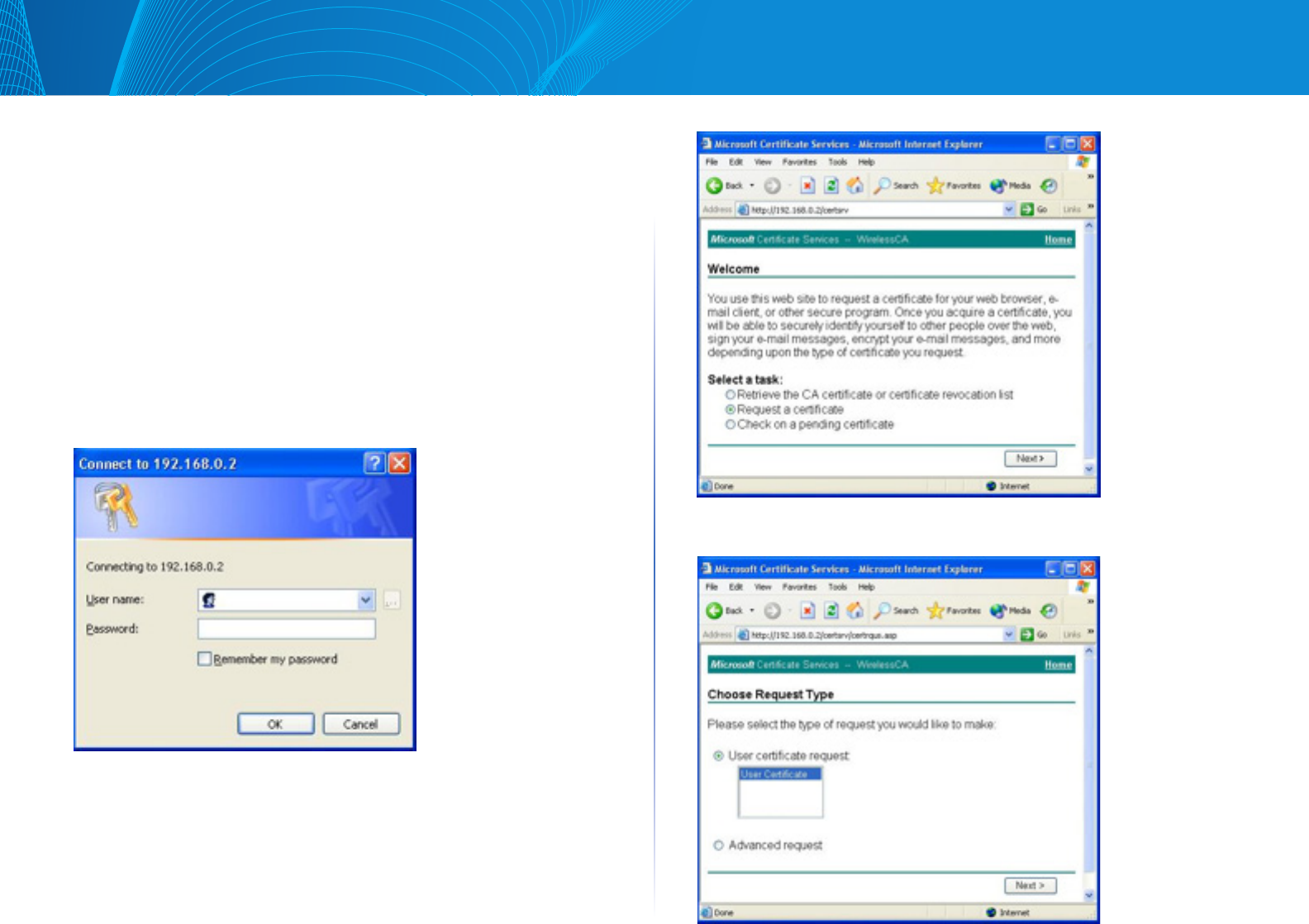

Figure 62: Connect Screen
4. On the first screen (below), select Request a certificate, click Next.
Figure 63: Wireless CA Screen
5. Select User certificate request and select User Certificate, click Next.
Figure 64: Request Type Screen
