Wireless Status
Wireless Status displays settings and status of wireless radios and SSIDs.

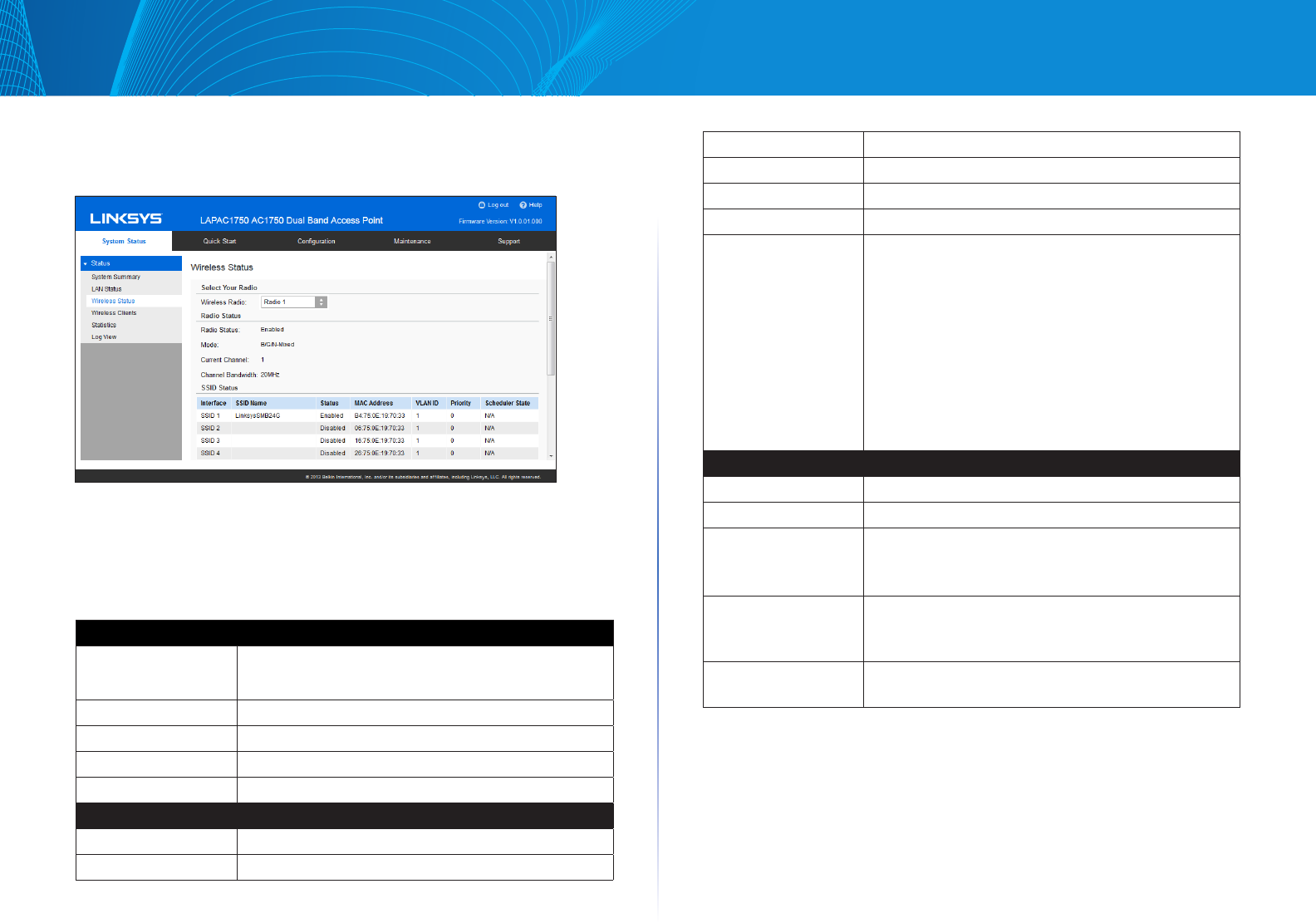

Figure 34: Wireless Status Screen
Data - Wireless Status
Radio Status
Wireless Radio Select the desired radio from the list.
Radio 1 is for 2.4 GHz, and Radio 2 is for 5 GHz.
Radio Status Indicates whether the radio is enabled.
Mode Current 802.11mode (a/b/g/n/ac) of the radio.
Channel The channel currently in use.
Channel Bandwidth Current channel bandwidth of the radio.
SSID Status
Interface SSID index.
SSID Name Name of the SSID.
Status Status of the SSID, enabled or disabled.
MAC Address MAC address of the SSID.
VLAN ID VLAN ID of the SSID.
Priority The 802.1p priority of the SSID.
Scheduler State Current scheduler status of the SSID.
•N/A
No scheduler is enabled on the SSID, or the SSID is
disabled by administrator.
•Active
The SSID is enabled.
•Inactive
The SSID is disabled.
Workgroup Bridge Status
Status Status of the Workgroup Bridge, enabled or disabled.
Local MAC MAC address of the Workgroup Bridge.
Remote SSID SSID of the destination access point on the other end
of the Workgroup Bridge link to which data is sent
and from which data is received.
Remote MAC MAC address of the destination access point on the
other end of the Workgroup Bridge link to which data
is sent and from which data is received.
Connection Status Status of the Workgroup Bridge, disabled, connected
or not connected.
