Advanced Screen
Use this screen to configure advanced network settings of the access point.

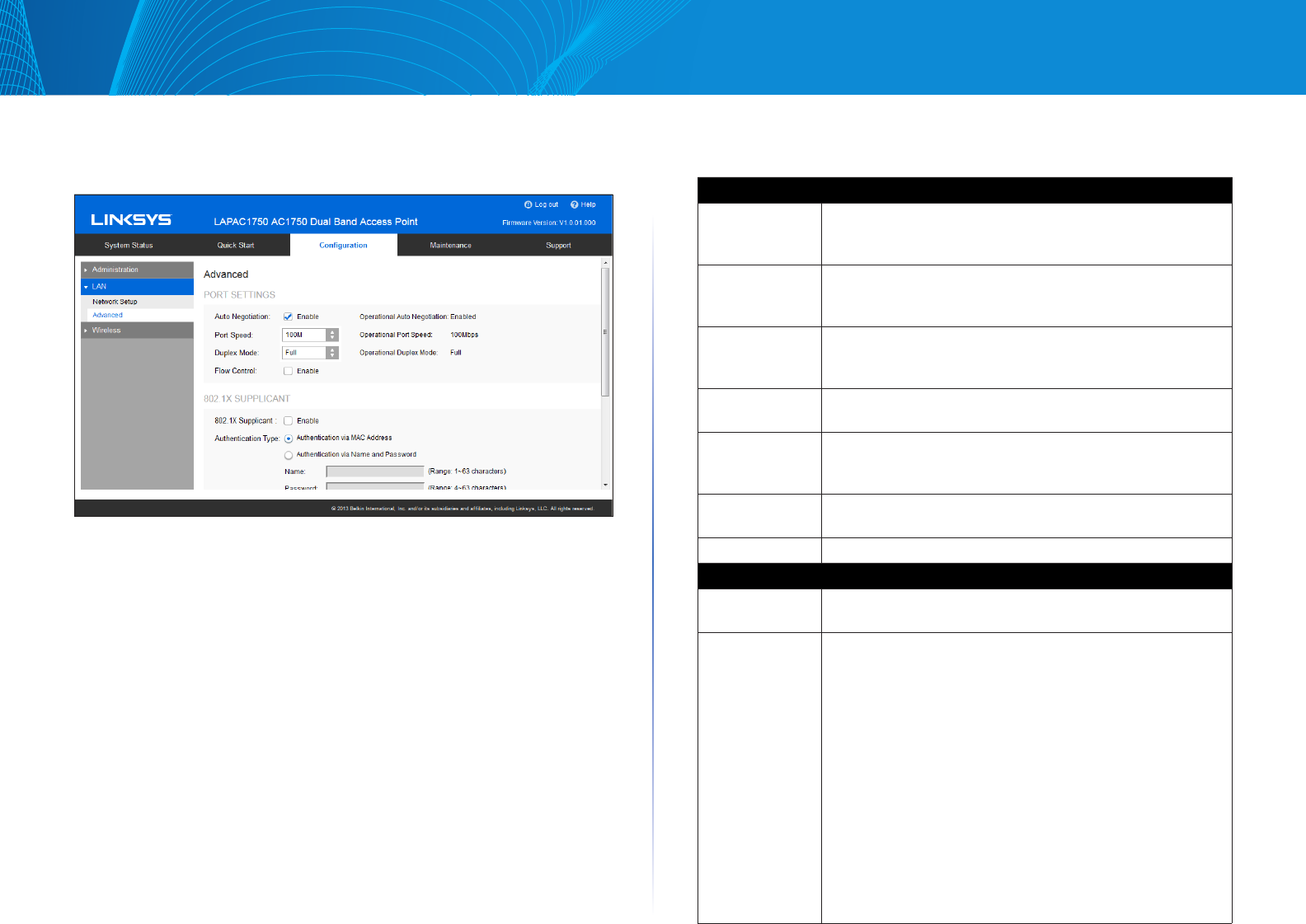

Figure 15: Advanced Screen
Data - Advanced Screen
Port Settings
Auto
Negotiation
If enabled, Port Speed and Duplex Mode will become grey
and cannot be configured. If disabled, Port Speed and
Duplex Mode can be configured.
Operational
Auto
Negotiation
Current Auto Negotiation mode of the Ethernet port.
Port Speed Select the speed of the Ethernet port. Available only when
Auto Negotiation is disabled. The option can be 10M, 100M
or 1000M (default).
Operational
Port Speed
Displays the current port speed of the Ethernet port.
Duplex Mode Select the duplex mode of the Ethernet port. Available only
when Auto Negotiation is disabled. The option can be Half
or Full (default).
Operational
Duplex Mode
Displays the current duplex mode of the Ethernet port.
Flow Control Enable or disable flow control of the Ethernet port.
802.1x Supplicant
802.1x
Supplicant
Enable if your network requires this access point to use
802.1X authentication in order to operate.
Authentication This feature supports following two kinds of authentication:
Authentication via MAC Address
Select this if you want to use MAC address for authentication.
The access point uses lowercase MAC address for Name and
Password, like xxxxxxxxxxxx.
Authentication via Name and Password
Select this if you want to use name and password for
authentication.
Name - Enter the login name. The name includes 1 to 63
characters. Special characters are allowed.
Password - Enter the desired login password. The password
includes 4 to 63 characters. Special characters are allowed.
