User manual

CHAPTER 2 Access Point Setup
Linksys
10
Data - SSL Certificate Screen
Export/Restore to/from Local PC
Export SSL
Certificate
Click to export the SSL certificate.
Install Certificate Browse to choose the certificate file. Click Install
Certificate button.
Export to TFTP Server
Destination File Enter the name of the destination file.
TFTP Server Enter the IPv4 address for the TFTP server.
Export Click to export the SSL certificate to the TFTP
server.
Restore from TFTP Server
Source File Enter the name of the source file.
TFTP Server Enter the IPv4 address for the TFTP server.
Install Click to install the file to the device.
Network Setup Screen
Use this screen to configure basic device settings, VLAN settings and settings
for the LAN interface, including static or dynamic IPv4/IPv6 address assignment.

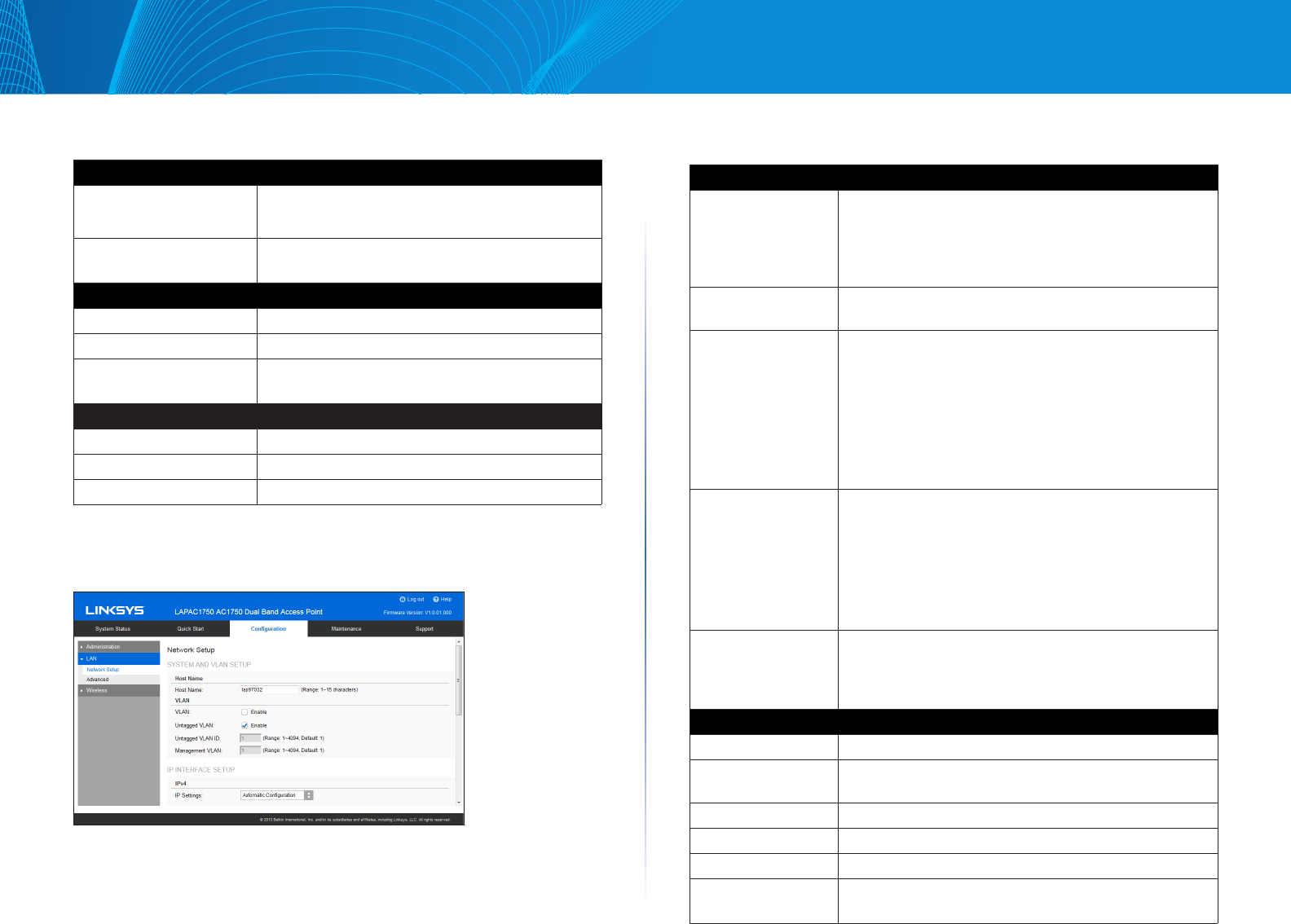

Figure 14: Network Setup Screen
Data - Network Setup Screen
TCP/IP
Host Name Assign a host name to this access point. Host name
consists of 1 to 15 characters. Valid characters include
A-Z, a-z, 0-9 and -. Character cannot be first and last
character of hostname and hostname cannot be
composed of all digits.
VLAN Enables or disables VLAN function. Workgroup Bridge
can only be enabled when VLAN function is disabled.
Untagged VLAN Enables or disables VLAN tagging. If enabled (default),
traffic is untagged when VLAN ID is equal to Untagged
VLAN ID and un-tagged traffic can be accepted by LAN
port. If disabled, traffic from the LAN port is always
tagged and only tagged traffic can be accepted from
LAN port.
By default all traffic on the access point uses VLAN 1, the
default untagged VLAN.
Untagged VLAN ID Specifies a number between 1 and 4094 for the
untagged VLAN ID. The default is 1. Traffic on the
VLAN that you specify in this field is not be tagged
with a VLAN ID when forwarded to the network.
Untagged VLAN ID field is active only when untagged
VLAN is enabled.
VLAN 1 is the default for untagged VLAN.
Management
VLAN
The VLAN associated with the IP address you use to
connect to the access point. Provide a number between
1 and 4094 for the Management VLAN ID. The default
is 1.
IPv4/v6
IP Settings Select Automatic Configuration or Static IP Address.
IP Address Enter an unused IP address from the address range used
on your LAN.
Subnet Mask Enter the subnet mask for the IP address above.
Default Gateway Enter the gateway for the IP address above.
Primary DNS Enter the DNS address.
Secondary DNS Optional. If entered, this DNS will be used if the Primary
DNS does not respond.
