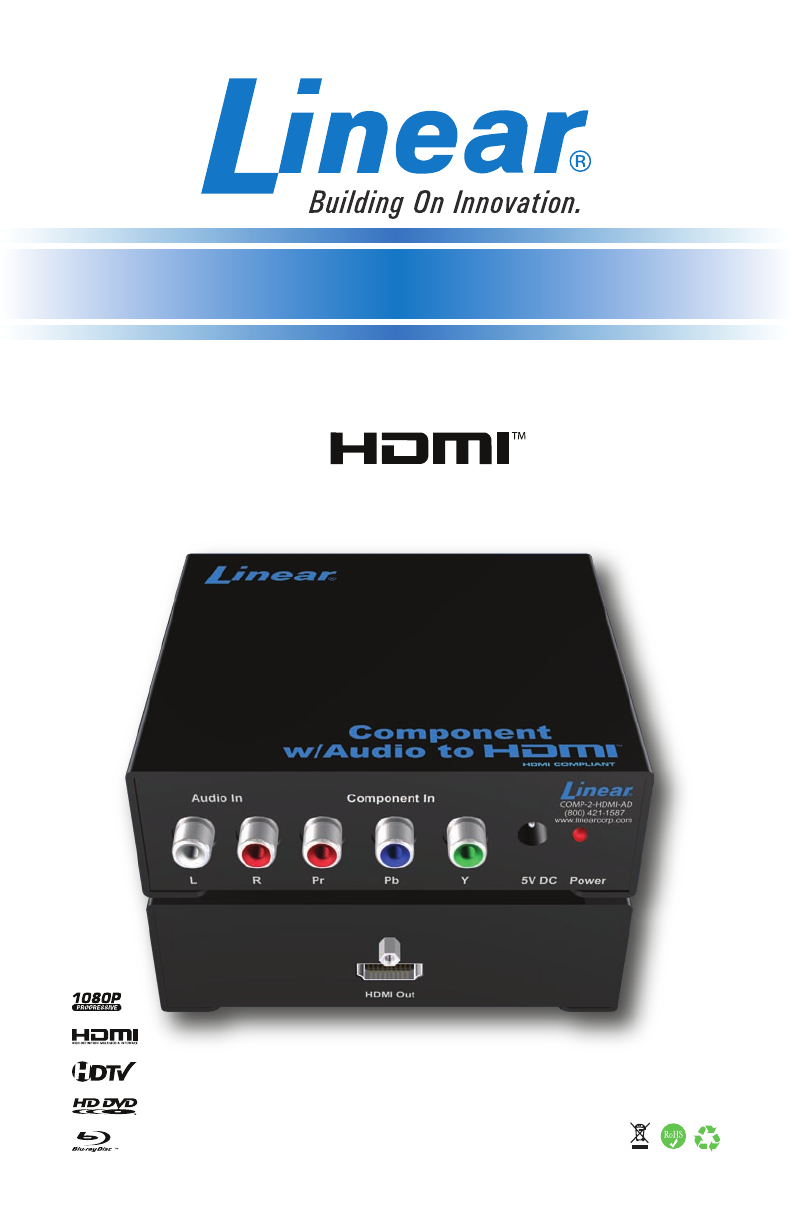

Component With Audio To HDMI Model # COMP-2-HDMI-AD USER MANUAL www.linearcorp.
ASKING FOR ASSISTANCE Technical Support: Telephone (800) 421-1587 (760) 438-7000 Fax (760) 438-7199 Technical Support Hours: 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Notice Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
TABLE OF CONTENTS 1 Introduction and How It Works 2 Features 3 Panel Descriptions 4 Connecting and Operating the Component with Audio To HDMI Adapter Model # COMP-2-HDMI-AD 5 Specifications 6 Warranty
INTRODUCTION The Component with Audio to HDMI Adapter is a unique device that allows older analog devices to be integrated seamlessly into the modern home theater. This adapter connects component video home theater devices to HDMI compliant digital monitors. This adapter also takes analog L+R audio and encodes it onto the HDMI signal for the full HDMI video and audio effect.
FEATURES Features • Allows you to connect YPbPr HDTV sources to an HDMI input • Encodes analog audio onto the HDMI signal • Supports HDTV resolution up to 1080p • HDMI compliant Includes: (1) Component With Audio To HDMI Adapter (1) 5V DC Power Supply (1) 6 ft RCA L+R Audio Cable (1) 6 ft 3 RCA Component Cable (1) Users Manual 2
PANEL DESCRIPTIONS Front Panel Analog Audio In Component Video In Back Panel HDMI Out 3 5V DC Power Power LED Indicator
CONNECTING AND OPERATING THE COMPONENT WITH AUDIO TO HDMI ADAPTER How to Connect the Component With Audio To HDMI Adapter 1 Connect your HDMI compliant device to the HDMI female connector at the output side of the Component with Audio to HDMI Adapter. 2 Connect the supplied Component cable between Component with Audio to HDMI Adapter input and the Component output of your source device.
HDMI cable maximum distance is 15 ft at 1080p resolution without a HDMI-SB or HDMI-CAT5-EXT Analog cable maximum distance is 50 feet at 1080p resolution without a COMP-CAT5-EXT WIRING DIAGRAM 5
SPECIFICATIONS Digital Video Amplifier Bandwidth ..................................................................165 MHz Video Amplifier Bandwidth .............................................................................350 MHz Input Video Signal ....................................................................................1.2 Volts p-p Input DDC Signal ..............................................................................5 Volts p-p (TTL) HDMI Connector .................................
WARRANTY Note: These products are designed to be installed and serviced by trained professional installation companies. Linear LLC warrants this product to be free from defects in material and workmanship. For the term of the warranty, see the list of products below. The Warranty Expiration Date is reflected by a date code that is affixed to all of Linear’s products. This warranty extends only to wholesale customers who buy direct from Linear or through Linear’s normal distribution channels.
