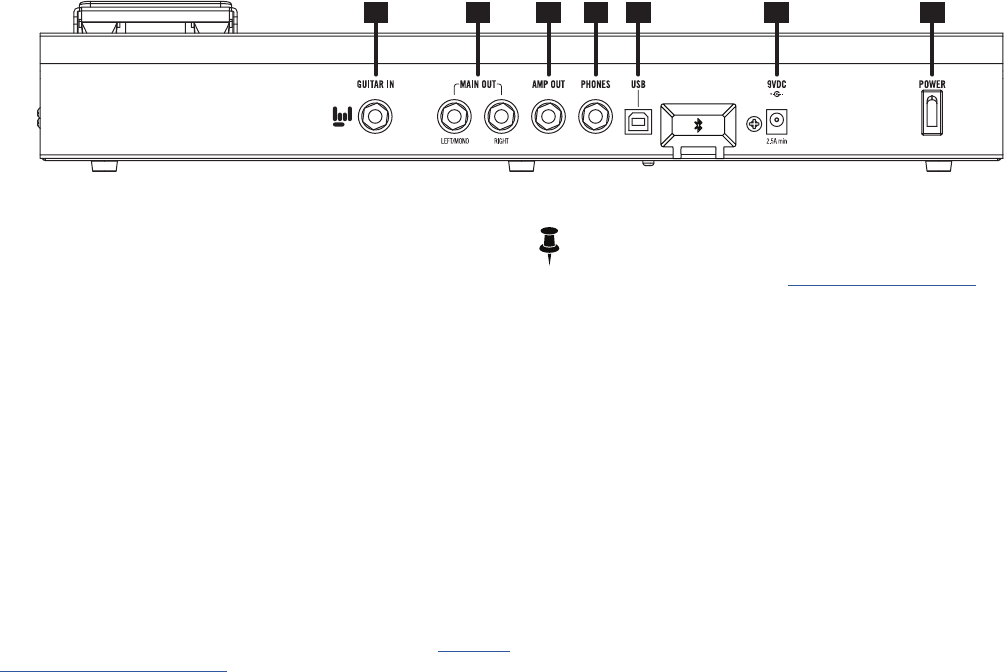

Rear Panel Connections
8 910 11 12 13 14
8. Guitar Input - Plug in your 1/4 inch guitar cable here.
9. Headphones - Plug in your 1/4 inch stereo headphones cable here.
Headphones volume is controlled by the Master Volume knob.
10. Main Outs - The Main Outs provide full range audio, sending out
a mix of processed guitar and any Bluetooth audio that may be
streaming to the unit. Plug 1/4 inch cables to the Main Outs to
connect to any number of destinations, such as a mixing console,
PA speakers or home stereo (using appropriate 1/4 inch adapters).
11. Amp Out - The Amp Out provides a 1/4 inch mono output of guitar
processed with amp modeling and eects. Bluetooth audio is not
sent to the Amp Out.
Using Main Outs & Amp Out Together - Only Bluetooth audio will
be present at the Main Outs when the Amp Out jack is connected.
12. USB Input - Connect to a Mac or PC computer's USB port to use
AMPLIFi FX100 as a stereo in-out USB audio interface for recording
or playback with your audio and multimedia applications.* USB
connectivity is also the recommended way to perform AMPLIFi
rmware updates with Line 6 Updater (please see "AMPLIFi
Firmware Updates" on page 7).
*NOTE: Before connecting to a Windows based
computer,
you'll need to rst download and install the latest AMPLIFi USB
Device Driver, available from http://line6.com/software. (No driver
installation is necessary for Mac computers.)
13. Power Supply Input - Only use a Line 6 9VDC Power Supply here
to power the unit.
14. Power - Switch on the power with this rocker switch.
