User's Manual

Table Of Contents

Push

Level

Tone

Input

Power

24V/1.75A

Charge

5V/500mA

Output

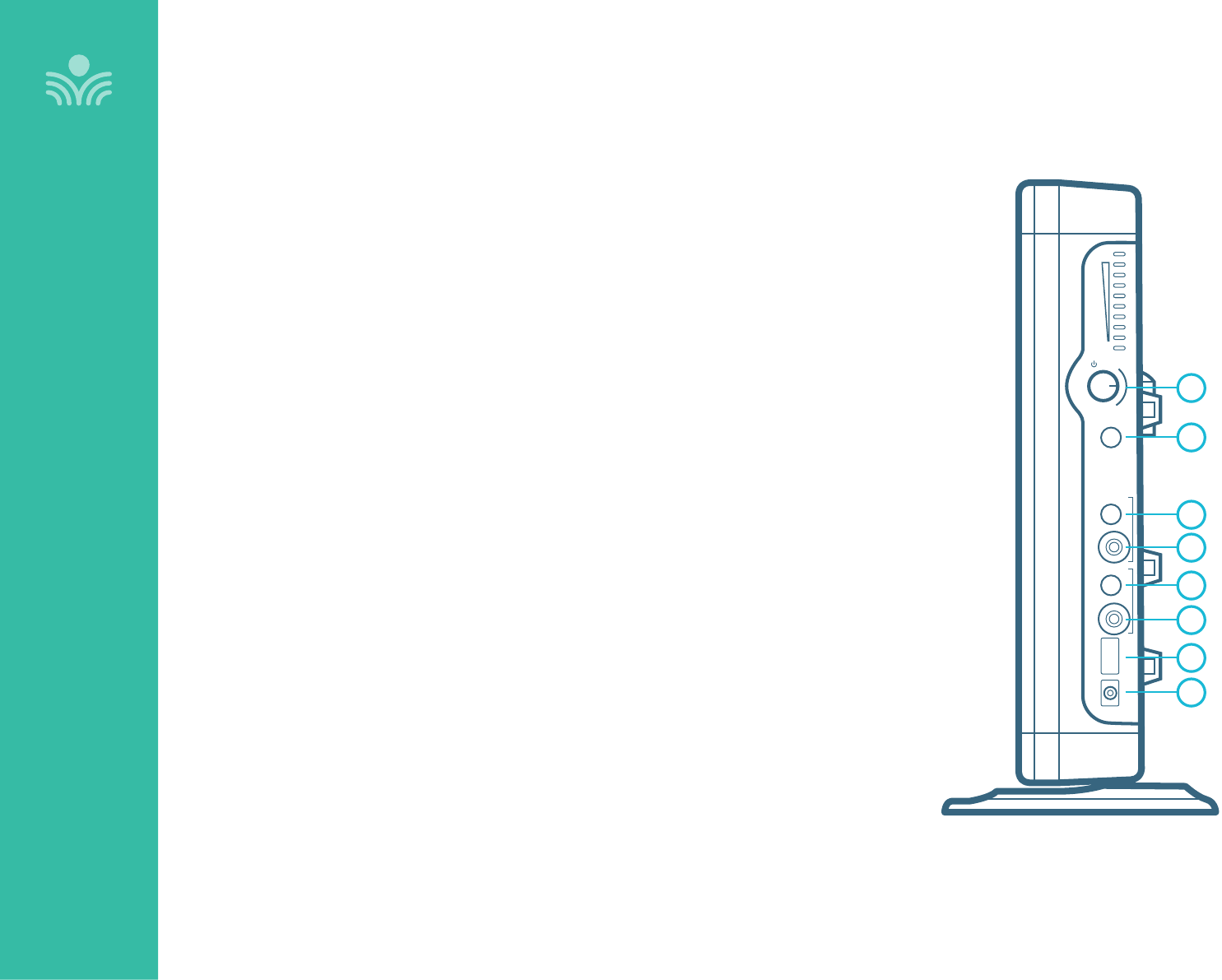

Side Panel Controls and Connections

OVERVIEW

1. POWER BUTTON / VOLUME ADJUSTMENT: Press this button to turn the system power on

or o. This also functions as an adjustment knob for the volume and tone depending on the

mode selected (see 5,6,7 below).

2. TONE SELECTOR: Selects Tone as the mode for the adjustment knob (1) for the microphone.

This adjusts the bass or treble that is heard through the classroom speaker.

3. AUDIO INPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob (1)

for the audio sources connected to the audio input jack below.

4. AUDIO INPUT JACK: 3.5mm stereo connector for connecting to a computer or mobile device

as an audio source.

5. AUDIO OUTPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob

(1) for the audio device connected to the audio output jack below.

6. AUDIO OUTPUT JACK: 3.5mm stereo connector for connecting to an assisted listening

device (ALD) or to a computer for recording.

7. EXTERNAL DEVICE/POWER PORT: Charge for external device.

8. POWER: Plug the power supply (24V/1.75A) into this jack.
