User's Manual

7

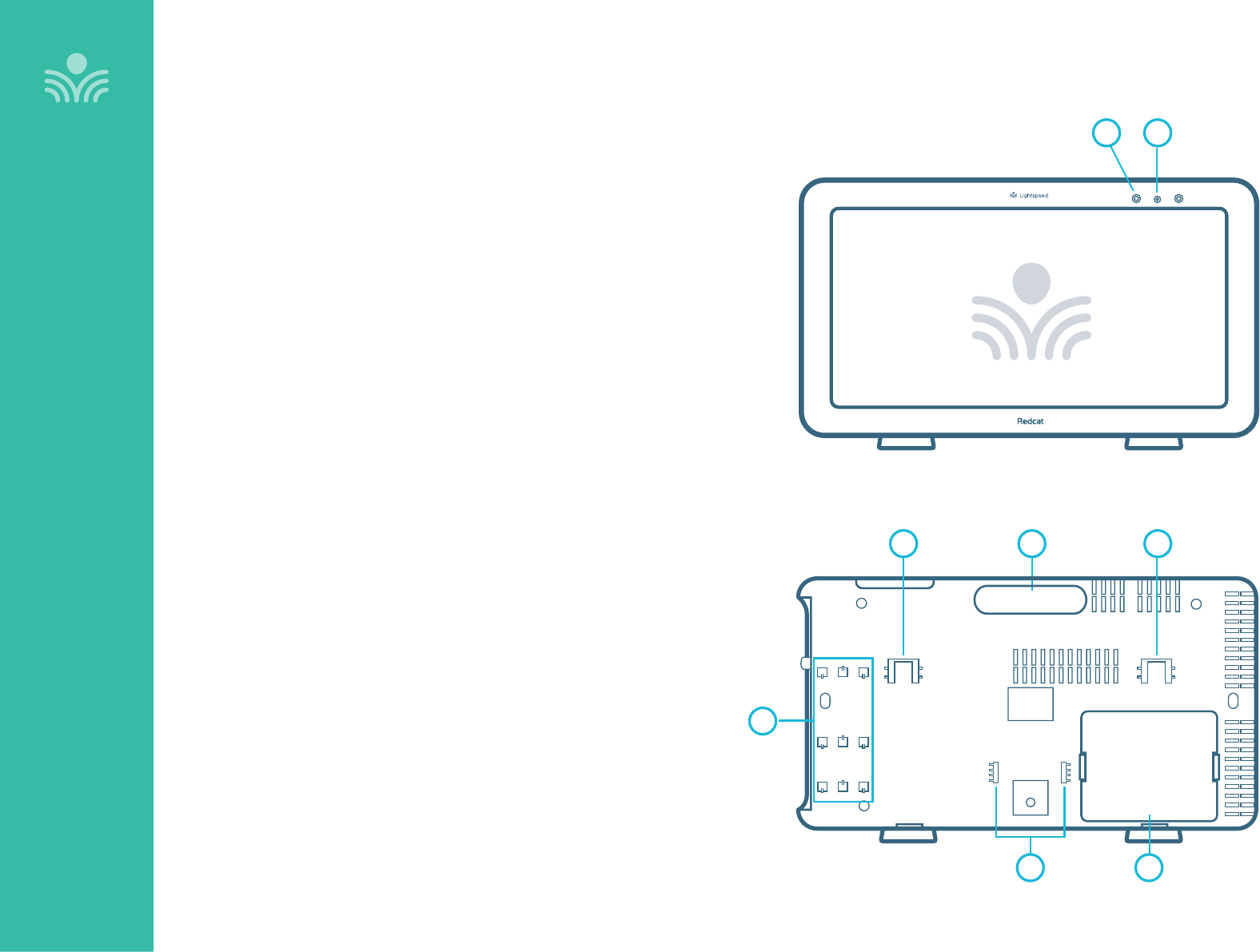

Controls and Connections
OVERVIEW
REAR PANEL
FRONT PANEL
1. CARRYING HANDLE INSET
2. CABLE MANAGEMENT AND STRAIN RELIEF
3. WALL MOUNTING SLOTS
4. SECURITY BRACKET SLOT
5. COMPARTMENT FOR OPTIONAL BATTERY PACK
1. STATUS LIGHT: Microphone link and pair indicators
Solid white: Audio link has been established
Solid blue: Indicates fixed part mode
Alternating blue/white: Registration in process
Solid white: Indicates portable part mode
O: Unregistered or nothing linked
2. POWER LIGHT
Solid white: Indicates power on
2
5
1
21
3 3
4
