OPTIONAL ACCESSORIES

Using the Media Connector

The Media Connector can be used as the primary volume control for the audio

sources you’ve connected.

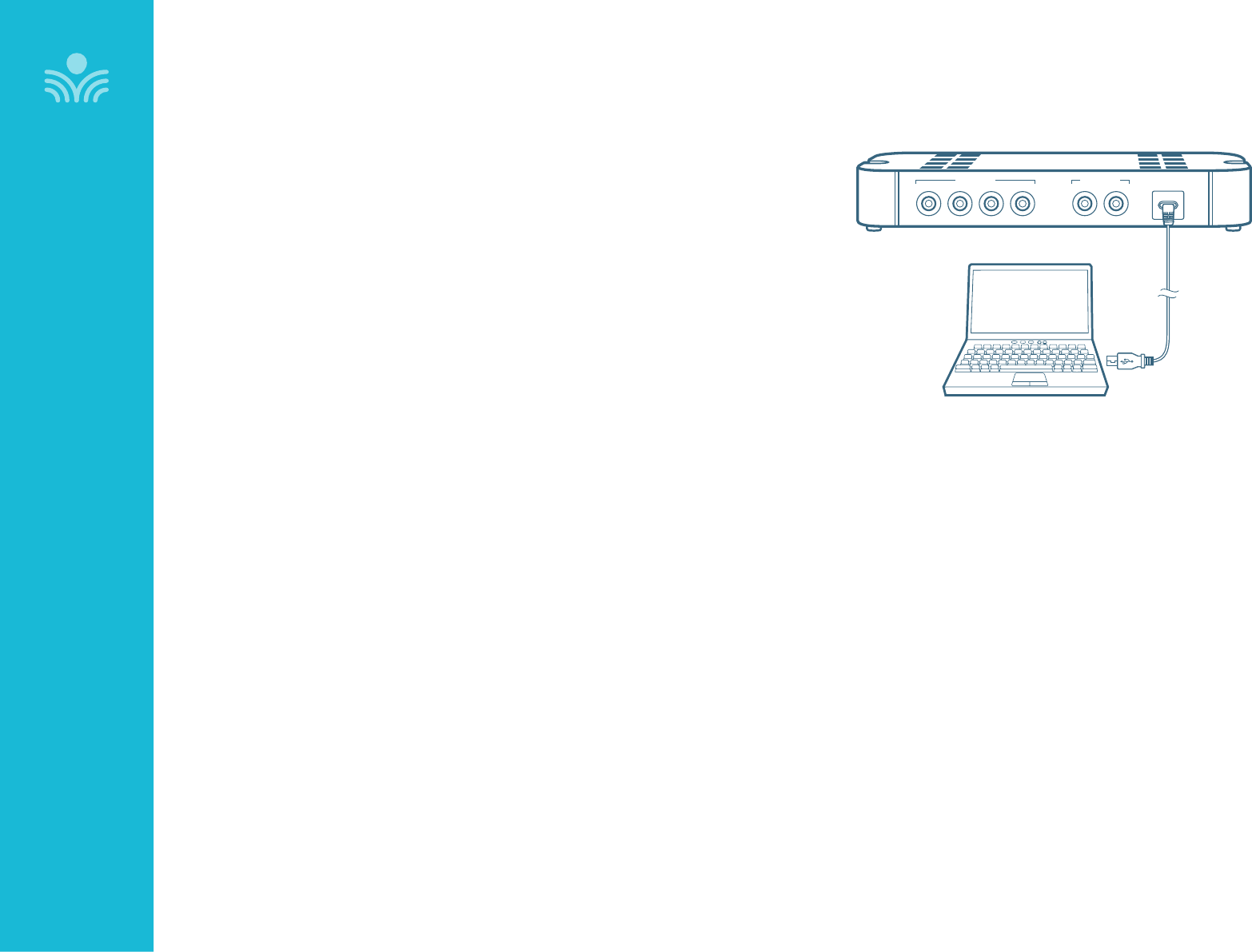

1. Plug the micro USB end of the power cable into the USB port on the back

of the Media Connector. Plug the other end of the cable into the USB power

adaptor. Also, the USB cable could be plugged into a computer for power.

2. Connect the audio source(s) to the Media Connector using the 3.5mm cables

provided.

3. Set the audio source volume to provide sound through the Redcat.

4. Use the AUDIO IN volume control on the front of the Media Connector to

increase or decrease the audio source sound level.

NOTE: When Media Connector is powered on and registered to Redcat, only its

microphone volume and tone controls are operational while those on the Redcat

are not.

NORMALIZING AUDIO SOURCE VOLUME LEVELS

Use the Media Connector as the master audio volume control for the classroom.

When two or more audio sources are connected, you will need to normalize

volume settings by setting all connected audio sources to the same sound level

while leaving the Media Connector AUDIO IN volume control set to its center

setting. The Media Connector is an audio mixer using a master volume control to

adjust the volume of all audio sources at once. Use the following procedure to set

audio source volumes:

1. Connect the multimedia audio sources to the Media Connector using the

3.5mm cables provided.

2. Set the AUDIO IN volume control on the Media Connector to its center

position.

3. Turn on an audio source that does not have an accessible audio level control.

(DVD, VCR player)

4. Adjust the Media Connector AUDIO IN volume control so the audio level playing

through the speaker is appropriate for the classroom.

5. Turn o the first audio source.

6. Turn on the second audio source. Use its volume control to balance the audio

output to the same audio level played through the speaker as the first source

7. Repeat steps 5 and 6 for the remaining audio sources.

8. Now, the Media Connector’s AUDIO IN volume can be used to increase or

decrease the volume level for all audio sources as desired.

USB

5V / 0.2A

Audio Inputs

432

Audio Outputs
