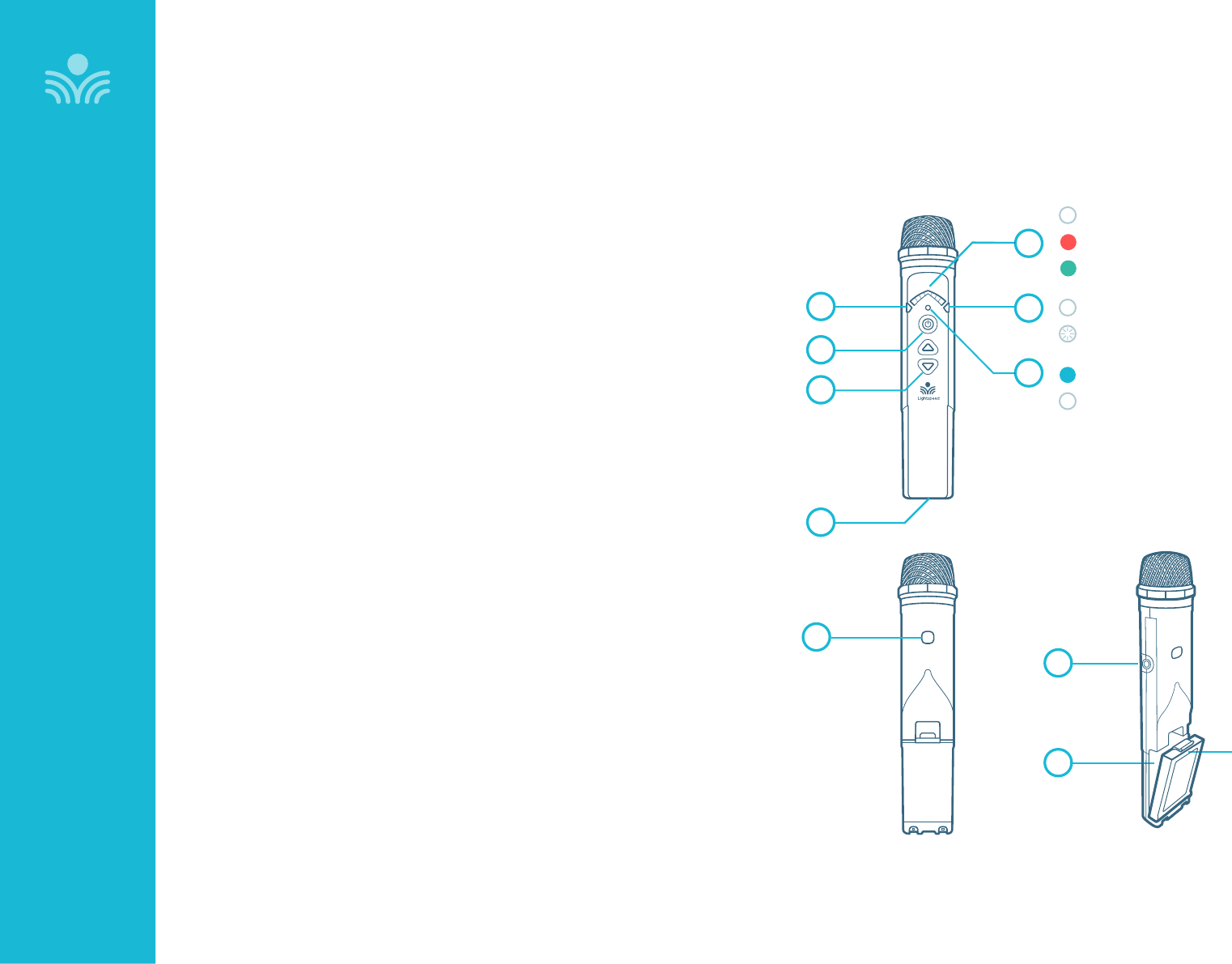

Sharemike Controls and Connections
1. POWER BUTTON
POWER STATUS LIGHT
Solid red: During operation, turns red to indicate low battery
Solid white: Normal operation
When charging in Cradle Charger:
Solid red: Charging
Solid green: Charging complete
2. MIC 1 STATUS: Lighted to indicate microphone is registered as MIC 1
Solid white: Normal operation
Flashing white: Linking in process
3. MIC 2 STATUS: Lighted to indicate microphone is registered as MIC 2
Solid white: Normal operation
Flashing white: Linking in process
MUTE/TALK STATUS LIGHT
Solid blue: Talk
Solid white: Mute
4. MICROPHONE VOLUME UP/DOWN
5. USB INPUT: Connect audio source to send to Topcat. USB input can
also be used for charging.
6. IR TRANSMITTER: For pairing to base unit
7. AUDIO INPUT: Plug a laptop or other audio device into this jack to
wirelessly transmit the audio signal to be played through the system.
8. VOLUME LOCK: Disables volume controls.
1
6
3
4
7
8
9
10
Input
BATTERY
REMOVAL
LATCH
UNDER
BATTERY
PACK
NORMAL OPERATION
LINKING IN PROGRESS (FLASHING)
2
5
TALK
MUTE
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
