B. MOUNTED ON A WALL

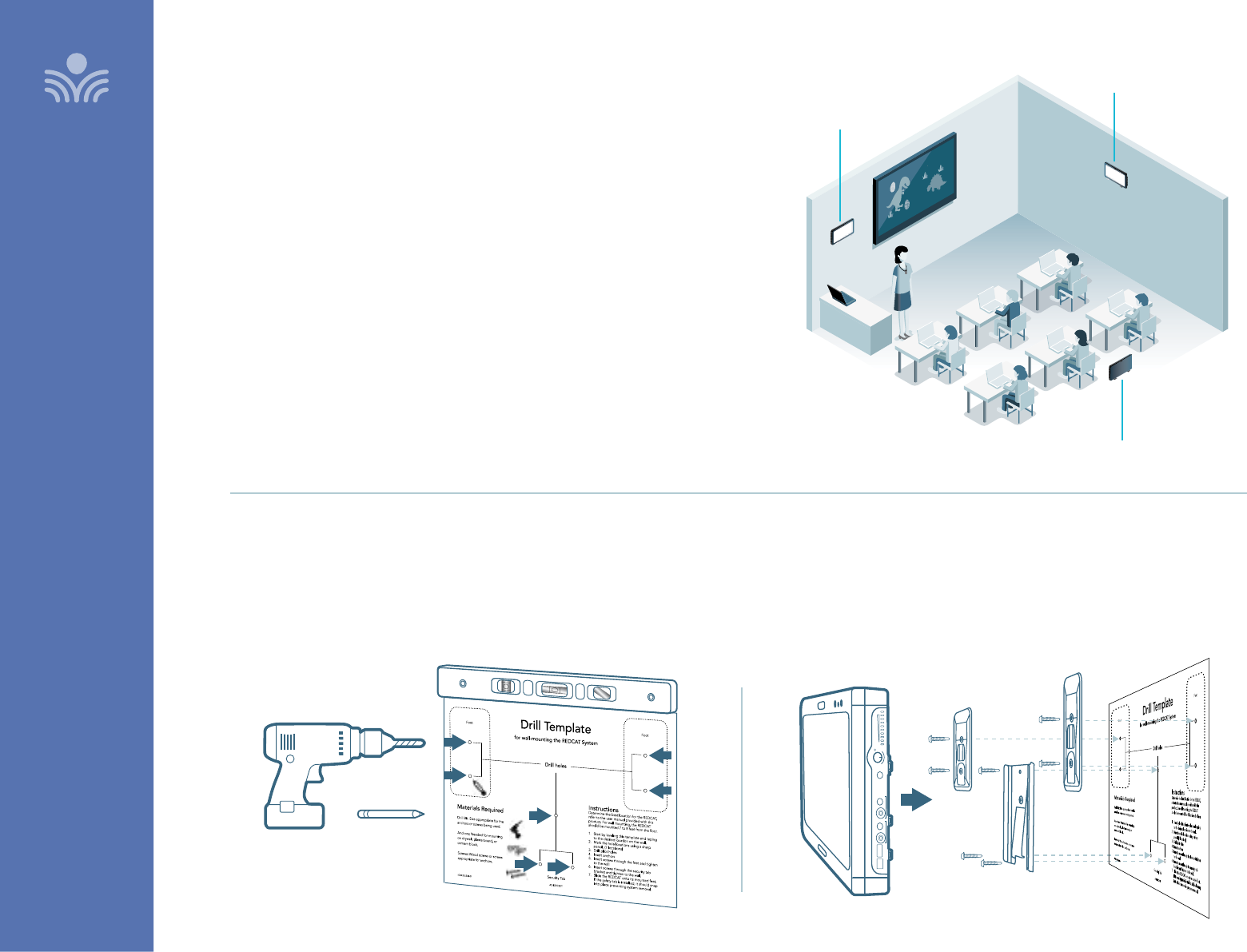

First, consider that the Redcat should be placed within 7 feet of an
electrical outlet and about 6-8 feet o the ground.
Next, find a location as far away as possible from the teacher who will
be using the mic.
• The best place is centered on the long wall opposite the teacher.
• If this is not possible, other good locations are on the wall next to
the teacher.
• Avoid placing the Redcat on any wall close to where the teacher
usually stands to instruct the class. Having the teacher’s mic too
close to the Redcat can result in feedback.
SET-UP & USE / OPERATION
1. Level template and tape to wall
2. Mark position of drill holes on wall
3. Drill pilot holes
4. Insert wall anchors
USING
THE WALL
TEMPLATE
5. Remove feet from Redcat and place
over anchors
6. Insert and secure screws through the
Redcat feet into the anchors
7. Insert and secure screws through the Redcat
feet into the anchors
8. If using optional security bracket, mount on
wall using the provided screws and anchors
9. Slide the Redcat onto the wall-mounted feet
OR
Push
Level
Tone
Input
Power
24V/1.75A
Charge
5V/500mA
Output
WALL BRACKETS
LEVEL
SECURITY BRACKET
Optional
AVOID!
BEST PLACEMENT
GOOD PLACEMENT
