Chapter3Hardwarelayoutand
interfacedescription
3.1Dimensionaldrawing

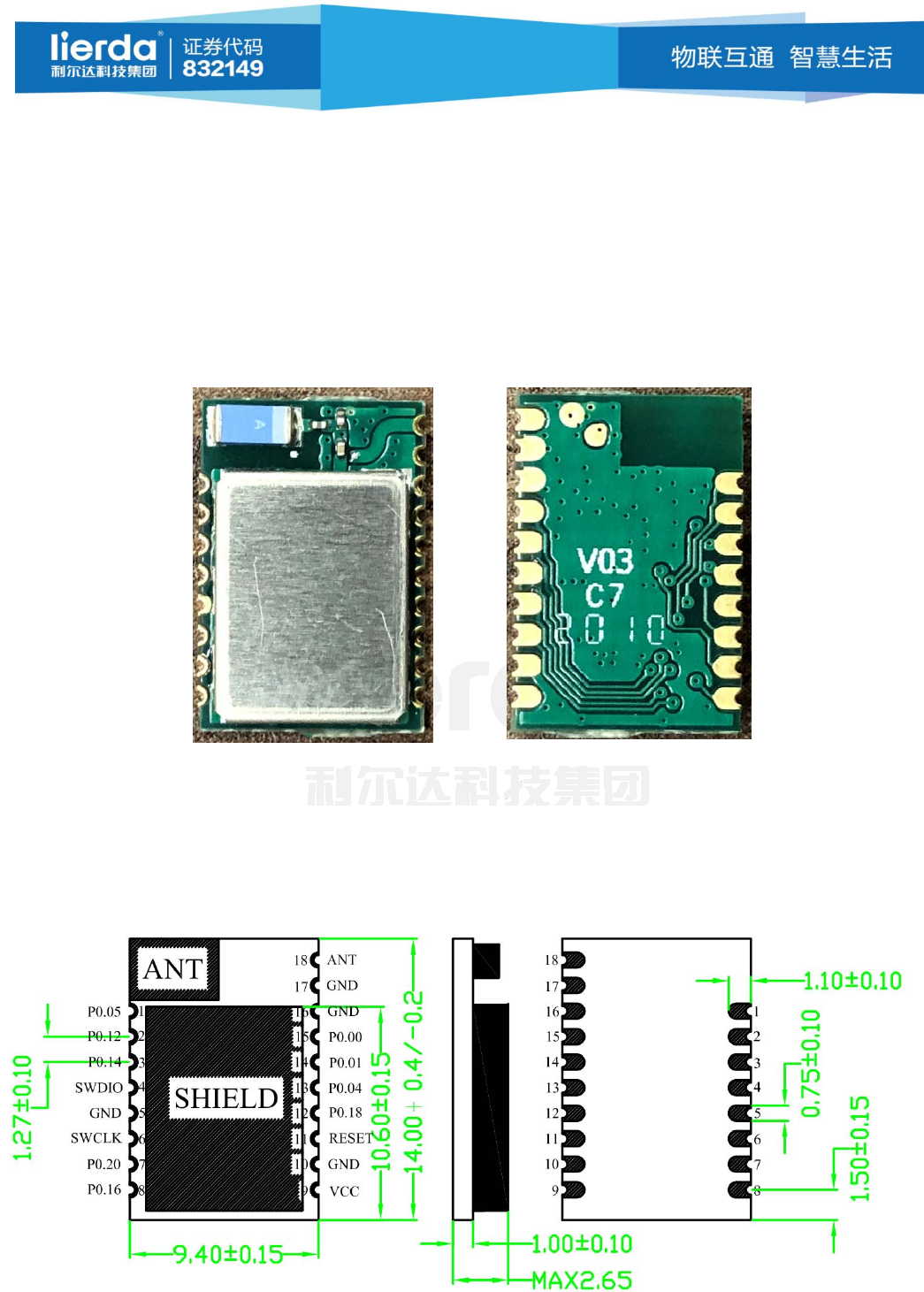

The physical picture of LSD4BT-S95 is as follows:
Figure 3-1 S95
When designing this product, there are alternative material types for Secondary
components and PCB. The appearance color may be different under the premise of Performance.
The main material (main chip, crystal oscillator, etc.) has no replacement model, but changes
will be notified in advance.
Figure 3-2 S95 series module outline drawing
