User Manual

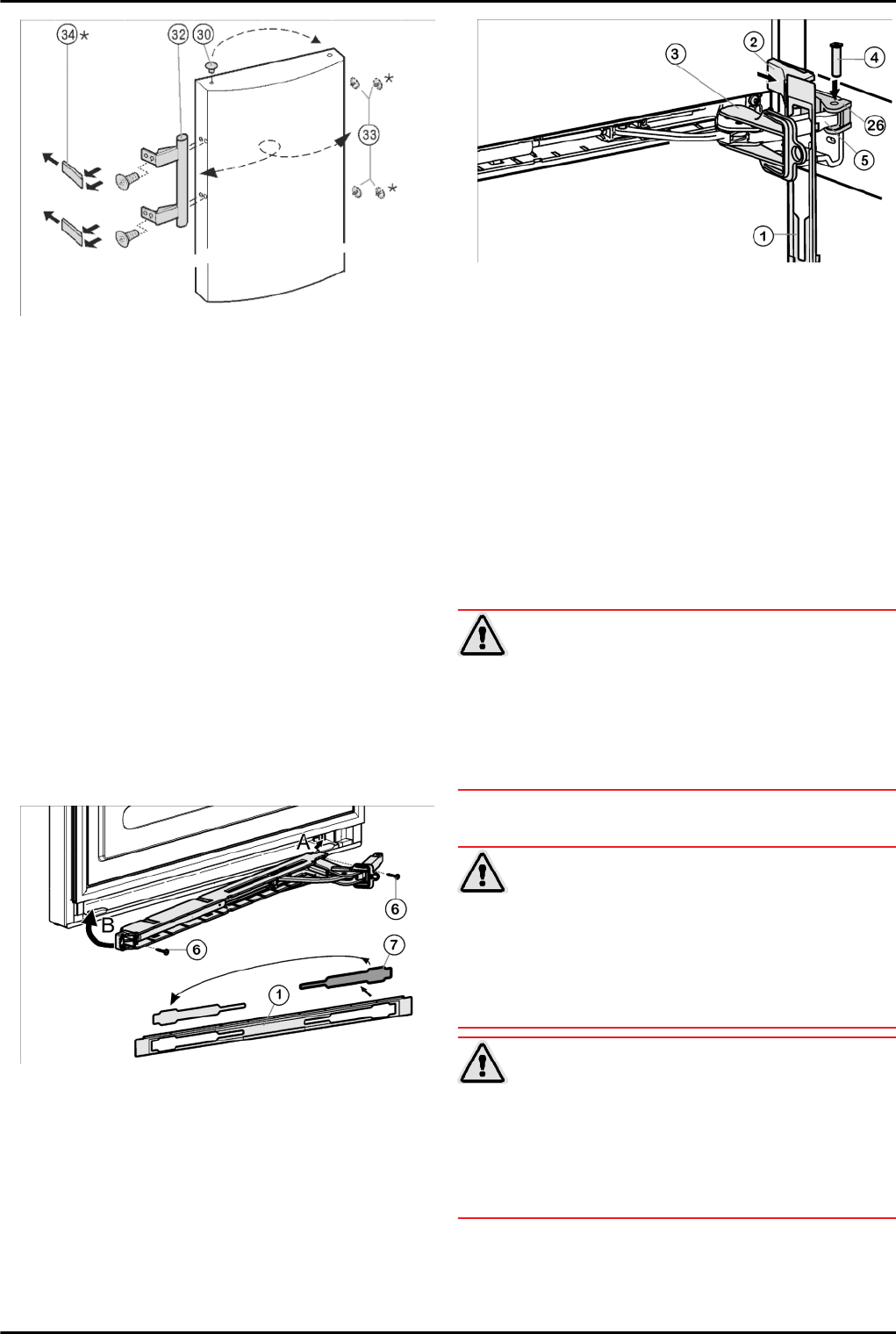

Fig. 10
u
Lift the stopper Fig. 10 (30) out of the door bearing bush and
transfer it.
u
Dismantle the door handle Fig. 10 (32) , stoppers
Fig. 10 (33) and pressure plates* Fig. 10 (34) and transfer to
the opposite side.
u
When fitting the pressure plates on the opposite side, make
sure they snap properly into place.*
4.3.5 Fitting the door
u
Place the door from above onto the lower bearing pin
Fig. 7 (22) .
u
Close the door.
u
Insert the upper turn hinge Fig. 6 (12) in the door on the new
hinge side.
u
Screw the upper turn hinge Fig. 6 (12) firmly into place (with
4 Nm)(2x Torx® 25) Fig. 6 (13) . Possibly make preliminary
holes with a bradawl or use a cordless screwdriver.
u
Snap the cover Fig. 6 (10) and cover Fig. 6 (11) into place at
the opposite side.
4.3.6 Fitting the soft stop unit*
For appliances with a closing damper.
For appliances without a closing damper continue with this
point (see 4.3.7) .
Fig. 11
u
Remove the cover
Fig. 11 (7) from the faceplate Fig. 11 (1)
and re-insert it at the other side.
u
Engage the soft stop unit with the joint pointing to the hinge
side (A) and swivel into place (B).
w
The screw holes at the left and right have to register.
u
Screw down the soft stop unit (2x Torx® 15) Fig. 11 (6) .
Fig. 12
u
Attach the faceplate Fig. 12 (1) to the soft stop bracket so
that the catches face forwards and the front faces the appli-
ance.
u
Draw the soft stop bracket Fig. 12 (5) towards the bearing
part Fig. 12 (26) and re-insert the pin Fig. 12 (4) from above
so that the square sits in the recess.
u
Attach and engage the cover Fig. 12 (2) .
w
Pay attention that the cover fits properly so that the door
closes properly and the pin is secured.
u
Twist the safety lock Fig. 12 (3) for removal.
u
Snap the faceplate
Fig. 12 (1) onto the door.
u
Close the door.
4.3.7 Aligning the door
u
Align the door to the appliance housing by way of the two
oblong holes in the bottom turn hinge
Fig. 7 (25) . To do so,
unscrew the middle screw.
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What is
more, the door may not close and therefore the appliance may
fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
4.4 Water connection*
WARNING
Danger of electric shock!
u
Disconnect the appliance by unplugging it before you
connect it to the water line.
u
Shut off the water supply before you connect the water feed
lines of the IceMaker.
u
The connection to the drinking water system may be carried
out only by a qualified gas fitter and plumber.
WARNING
Risk of poisoning!
u
The water quality has to comply with the drinking water ordi-
nance of the respective country (e.g. 98/8
u
Connect to the drinking water supply only.
u
The IceMaker serves exclusively for making ice cubes in
household quantities and has to be operated with water suit-
able for the purpose.
- The water pressure must be between 0.15 MPa and
0.6 MPa (1.5 bar - 6 bar).
- The water supply to the appliance must be via a cold water
pipe which withstands the operating pressure and complies
with the hygiene regulations.
Putting into operation
8 * Depending on model and options
