User Manual

u
Pull the soft stop unit out a little, push it in the direction of the
handle side and swing it out.
u
Set the soft stop unit aside.

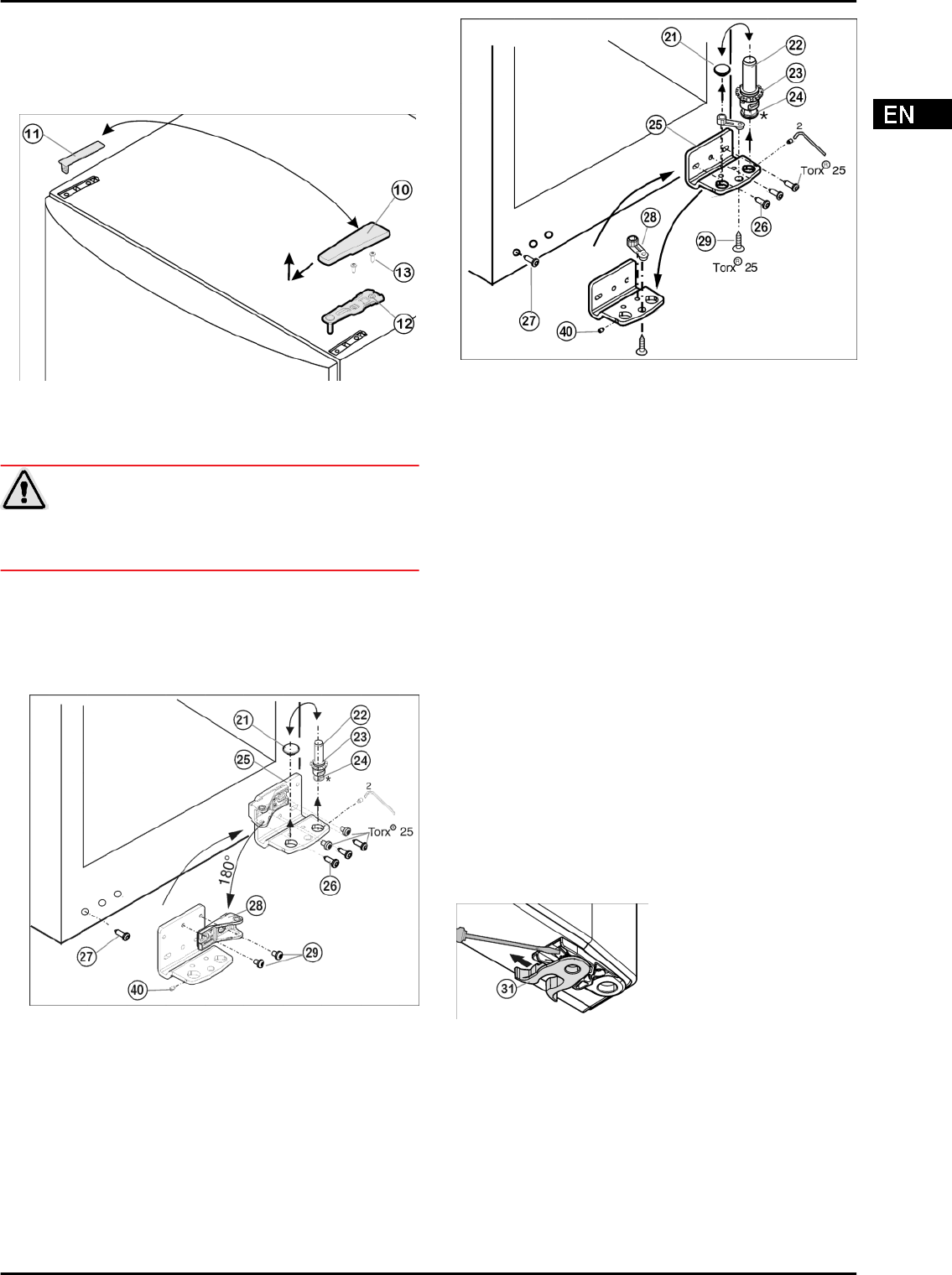

4.3.2 Detaching the door
Fig. 6
u
Close the door.
u
Pull off the cover
Fig. 6 (10) forwards and upwards.
u
Lift off the cover Fig. 6 (11) .
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Unscrew the upper turn hinge
Fig. 6 (12) (2x Torx® 25)
Fig. 6 (13) and raise it for removal.
u
Lift up the door and set it aside.
4.3.3 Changing the bearing parts
For appliances with a closing damper:
Fig. 7 *
For appliances without a closing damper:
Fig. 8
*
For all appliances
u
Using the accompanying Allen key, unscrew the threaded
pin
Fig. 7 (40) by about 1 turn.
u
Turn and lift out the bearing pin Fig. 7 (22) together with
washer Fig. 7 (23) and adjustable-height foot* Fig. 7 (24) .
u
Lift off the stopper Fig. 7 (21) .
u
Unscrew the turn hinge Fig. 7 (25) .
u
Fully unscrew the threaded pin Fig. 7 (40) and screw it in on
the opposite side, at the turn hinge, until it is flush outside
with the turn hinge.
For appliances with a closing damper:
u
Unscrew the bearing element Fig. 8 (28) , turn it through 180°
and screw it firmly back into place .
For appliances without a closing damper:
u
Unscrew storage section Fig. 8 (28) and fit it to the opposing
locating bore in the mounting block, then tighten it down.
For all appliances
u
Re-insert the stopper Fig. 7 (21) into the other hole.
u
Undo the screw Fig. 7 (27) and transfer it to the opposite
side.
u
Screw the turn hinge Fig. 7 (25) firmly into place on the new
hinge side, possibly using a cordless screwdriver (with
4 Nm).
u
Re-insert the bearing pin Fig. 7 (22) together with washer
and adjustable-height foot*.
u
Tighten the threaded pin Fig. 7 (40) .
4.3.4 Transferring the handle
For appliances without a closing damper:
Fig. 9
u
Turn around the spring clamp
Fig. 9 (31) : Press down the
detent lug and pull the spring clamp up and over to remove
it.
u
Slide spring clamp onto the new hinge side until it clicks into
place.
For all appliances
Putting into operation
* Depending on model and options 7
