ELECTRICAL WIRING
LG SIMS - Self Diagnosis Functions

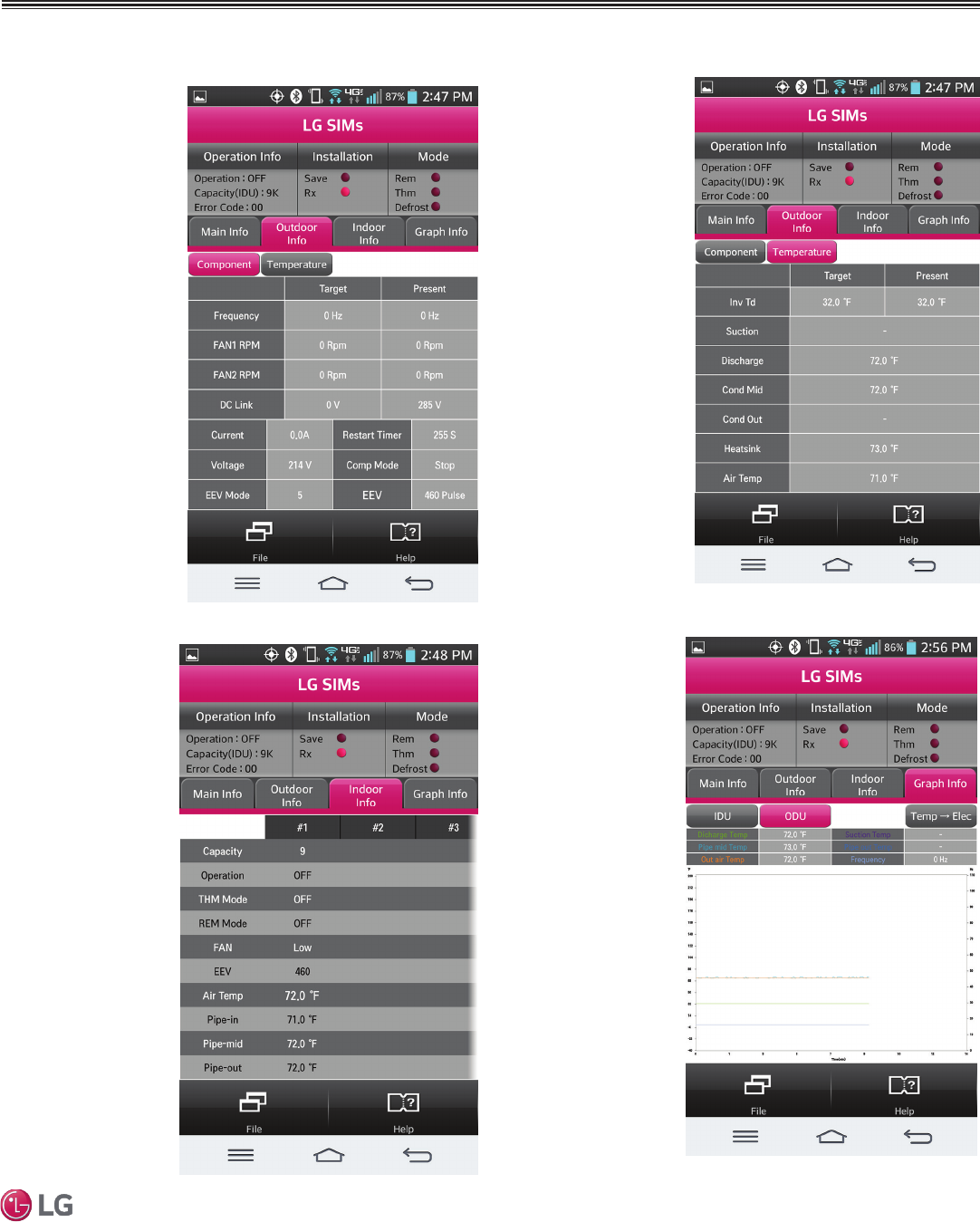

SIMs App Screens
Outdoor Info/
Component Screen
Displays the following
information:
• Frequency
• FAN1 RPM
• FAN2 RPM
• DC Link
• Current
• Voltage
• EEV Mode
• Restart Timer
• Comp Mode
• EEV
Indoor Info Tab
Displays the following
information:
• Frequency
• Operation
• THM Mode
• REM Mode
• FAN
• EEV
• Air Temp
• Pipe-in
• Pipe-mid
• Pipe-out
Graph Info Tab
This tab, has three sub
sections:
• IDU - Indoor Unit
Temperature graph.
Displays IDU
information in graph
format. Information
displayed is for the
IDU # selected on
the Main screen.
• ODU - Outdoor Unit
Temperature and
Frequency graph.
Displays ODU
information in graph
format.
• ODU Electric
- Outdoor Unit
Electric data graph
is displayed.
Outdoor Info/
Temperature Screen
Displays the following
information:
• Inv TD
• Suction
• Discharge
• Cond Mid
• Cond Out
• Heatsink
• Air Temp
