User guide

When the drive is in PID mode, the DRIVE STATUS portion of the display will indicate actual output

frequency(inHertz)insteadofRUN,andtherightsideofthedisplaywillindicatePIDSETPOINT,%

LOAD,orPIDFEEDBACK.TheENTERkeyisusedtotogglebetweenthedifferentdisplays.Examples

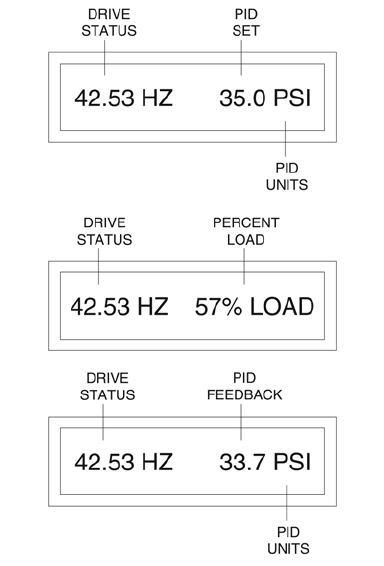

of the possible displays are shown below:

 Intheexamplesabove,thedriveisrunningat42.53HztomaintainthePIDSETPOINTof35.0psi.

Pressing the ENTER key displays % LOAD, which is 57%. Pressing ENTER again displays the PID

FEEDBACK from the process, which is 33.7 psi.

When the PID SET POINT and PID FEEDBACK displays are entered, the display will flash SET POINT

or FEEDBACK before displaying the value to indicate which display is being viewed.
