User guide

16.2 PARAMETER ACCESS USING SPEED DIAL

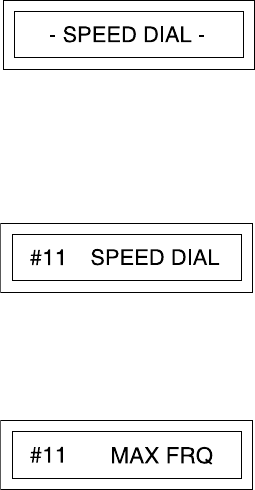

 SPEED DIAL is used to access parameters quickly using the parameter number. Once accessed, the

parameter can be programmed as described in Section 16.1. SPEED DIAL is accessed by pressing the

AUTO/MANkeywhileinthePROGRAMmode.ThiswillactivatetheSPEEDDIALdisplayasshown

below:

 Once in SPEED DIAL, the UP and DOWN arrow keys will allow the operator to scroll through the

parameter numbers. The display will continue to show SPEED DIAL while scrolling through the

parameter number, as shown below:

When the desired parameter is reached, the SPEED DIAL display will be replaced by the parameter name:

 Oncethedesiredparameterisdisplayedonthescreen,presstheENTERkeytodisplaytheparametername

and present setting. The parameter setting can now be changed by the method described in Section 16.1.

PresstheAUTO/MANkeytoreturntoSPEEDDIAL.
