User guide

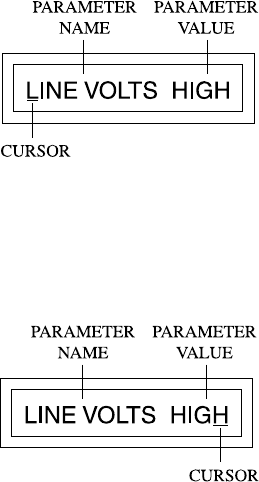

Once the correct password is entered, the PROGRAM mode will be entered and the first parameter will be

displayed, which is Parameter 0 - LINE VOLTS. This is shown below:

 Toscrollthroughtheparameters,usetheUPandDOWNarrowbuttonsonthekeypad.Whenthedesired

parameterisfound,presstheENTERkeytoshiftthecursorfromtheparameternametotheparameter

value.Inthisexample,thecursorshiftsfromLINEVOLTStoHIGH:

The parameter value can then be changed using the UP and DOWN arrow buttons. If the parameter has a

numerical value, the UP arrow will increase the value and the DOWN arrow will decrease the value. If the

parameterhasspecificchoicesthatcanbeselected,theUPandDOWNarrowkeyswillscrollthroughthe

listofpossiblesettings.Whenthedesiredvalueoroptionisselected,presstheENTERkeytostorethenew

setting.IfthenewsettingisnotENTERED,itwillnottakeeffectandtheoldsettingwillstillbevalid.

 IfthePROG/RUNkeyispushedwhilethecursorishighlightingtheparametervalue,thevaluewillchange

backtotheoriginalsetting(ifithadbeenchanged,butnotENTERED),andthecursorwillshiftbackto

theparametername.PressingPROG/RUN againwillexittheprogram mode.IfthePROGRAMmode

is entered again within two minutes, the last parameter that was viewed, or changed, will come up on the

display. After two minutes has elapsed, the password will have to be entered again when attempting to access

the PROGRAM mode.
