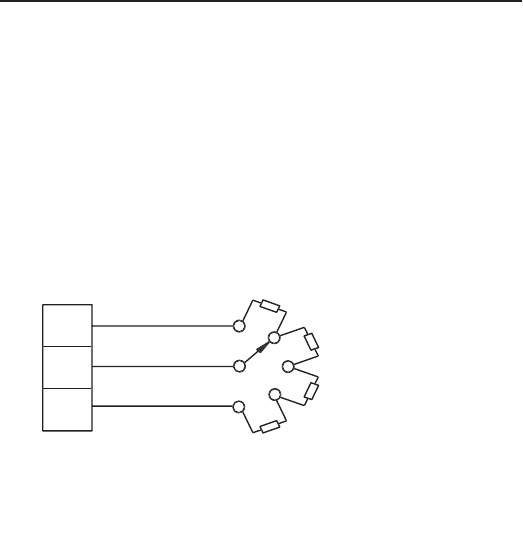

Figure 11. Multiple Fixed Speeds
Replace the speed adjust potentiometer with series
resistors with a total series resistance of 10K ohms
(Figure 11). Add a single pole, multi-position switch with the
correct number of positions for the desired number of fixed
speeds.
Multiple fixed speeds
