WaveAce 1000/2000
Note: After using corresponding option buttons to choose Do Self Cal,
Do Self Test, or Print Setup (when enabled by selecting Printer on
the Back USB option button), you're taken to a separate menu based
on your selection where additional options are then shown. You can
always return to the original menu from this menu by pressing the
UTILITY front panel button.

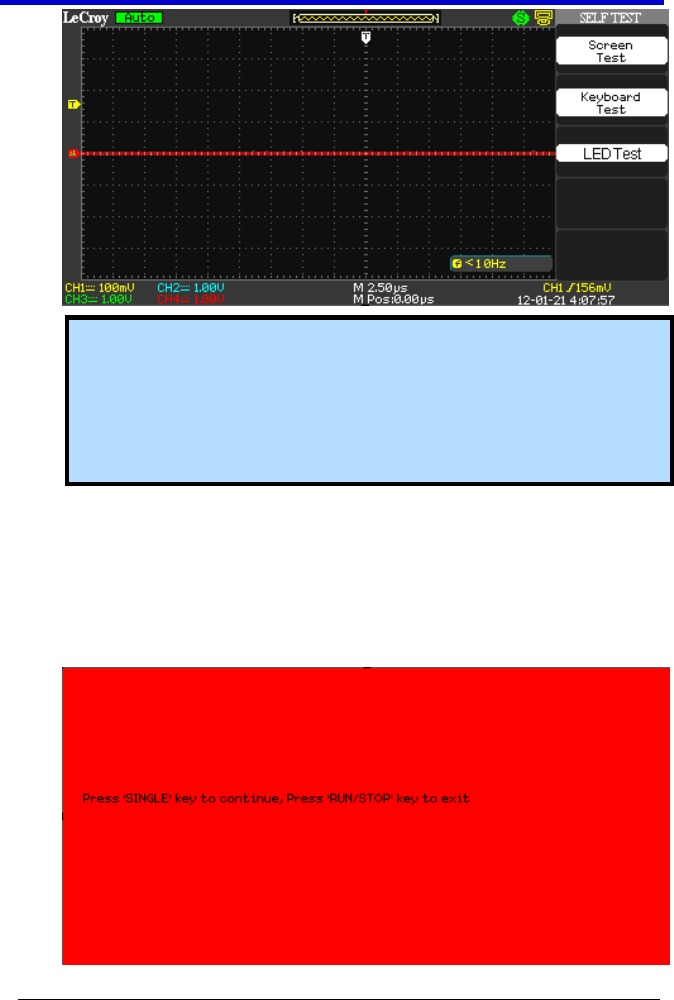

Choose from Screen, Keyboard, or LED tests by pressing the
respective option button.
After making your selection a corresponding screen is shown
where either the SINGLE or RUN/STOP front panel button is used
to complete the test and/or exit the test screen, respectively.
Screen, Keyboard, and LED Test screens look like the following:
