2. The Source can be any channel, but not another math trace.
Channel behavior for the math operators allow for CH1-CH2 or
CH2-CH1 selections.
Math on 4 Channel WaveAce Models
Math Menu Pages 1/2 and 2/2 and their options are described as follows:

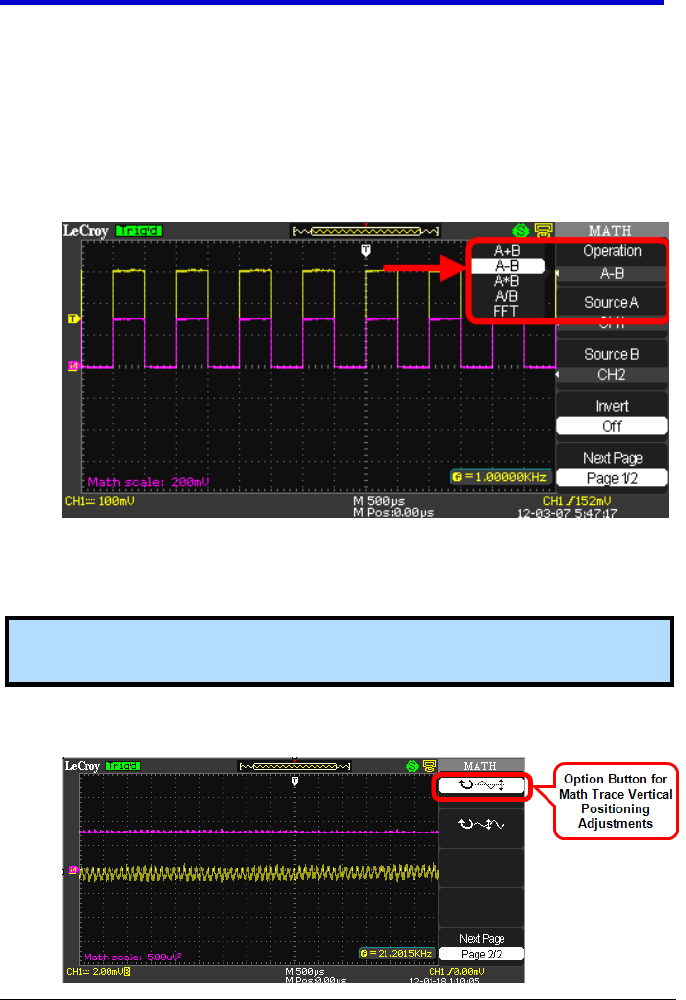

1. Press the Operation option button and select a math operator A +
B,A - B, A * B, /, or FFT Spectrum Analyzer (on page 57).
2. The Source can be any channel, but not another math trace.
Channel behavior for the math operators force CH1+CH2 or
CH3+CH4 selection pairings (using addition as an example).
Note: Invert a waveform by pressing the CH1Invert or CH2Invert (or
CH3Invert or CH4Invert on 4 Channel models) option button and select On.
3. Position your math trace vertically by pressing the following
option button and turning the Adjust knob as desired.
