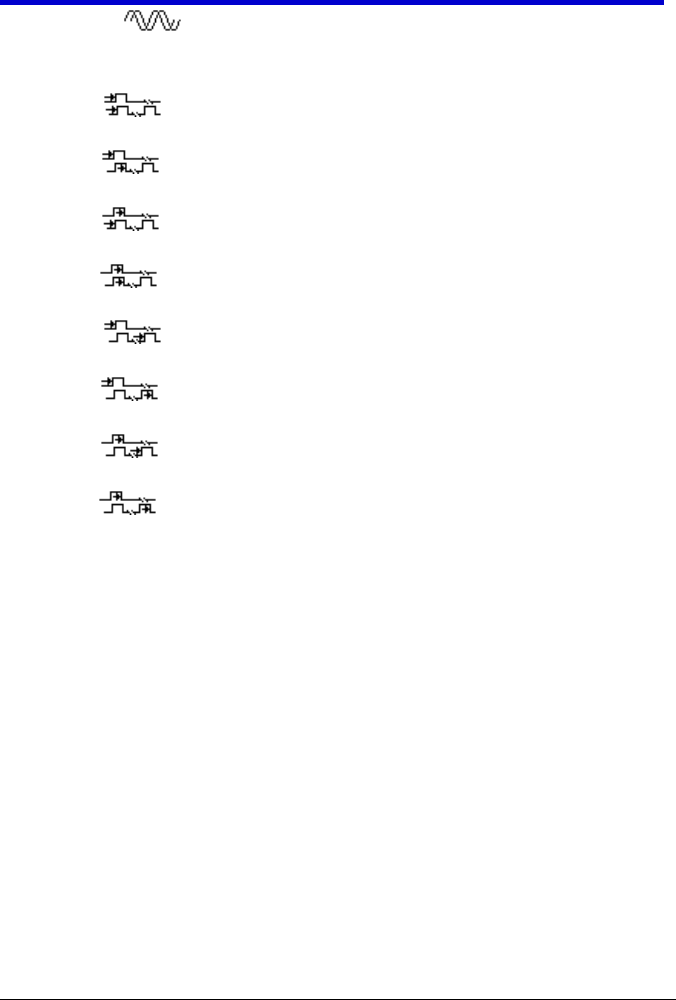

 Phase - Amount one waveform leads or lags another in
time expressed in degrees, where 360 degrees comprise one
waveform cycle.
 FRR - Time between the first rising edge of Source 1 and
the first rising edge of Source 2.
 FRF - Time between the first rising edge of Source 1 and
the first falling edge of Source 2.
 FFR - Time between the first falling edge of Source 1 and
the first rising edge of Source 2.
 FFF - Time between the first falling edge of Source 1 and
the first falling edge of Source 2.
 LRR - Time between the first rising edge of Source 1 and
the last rising edge of Source 2.
 LRF - Time between the first rising edge of Source 1 and
the last falling edge of Source 2.
 LFR - Time between the first falling edge of Source 1 and
the last rising edge of Source 2.
 LFF - Time between the first falling edge of Source 1 and
the last falling edge of Source 2.
All Mea (Measurement) Settings
Pressing the All Mea option button shows a menu where you can choose
to display a given set of measurement values for a Source Channel, and
turn On or Off its corresponding measurement values for Voltage and
Time on the grid display.
