You can adjust the cursor position on the waveform by turning the
Adjust front panel knob. Measurement values are shown in the
upper-left corner of the grid display.
3. Auto - Automatically places markers of what is being measured on
the waveform. These markers clarify parameter measurements by
displaying cursors and a visual representation of what is being
measured. When in Auto cursor mode, as you select measurement
parameters the markers will be displayed for the measurements.
Cursor Measurement Selections
 Time cursors are vertical lines that you move horizontally to
measure the difference in time or frequency values between the
cursors.
 Voltage cursors appear as horizontal lines on the display and
measure the vertical parameters.
 Measurement values are shown in the upper-left corner of the
grid display and are explained as follows:
Shown in Manual Cursor Mode
▲V - the vertical space between Cursor A and Cursor B (Voltage
value between the two cursors)
CurB - the horizontal position of Cursor B (in Volts)
CurA - the horizontal position of Cursor A (in Volts)

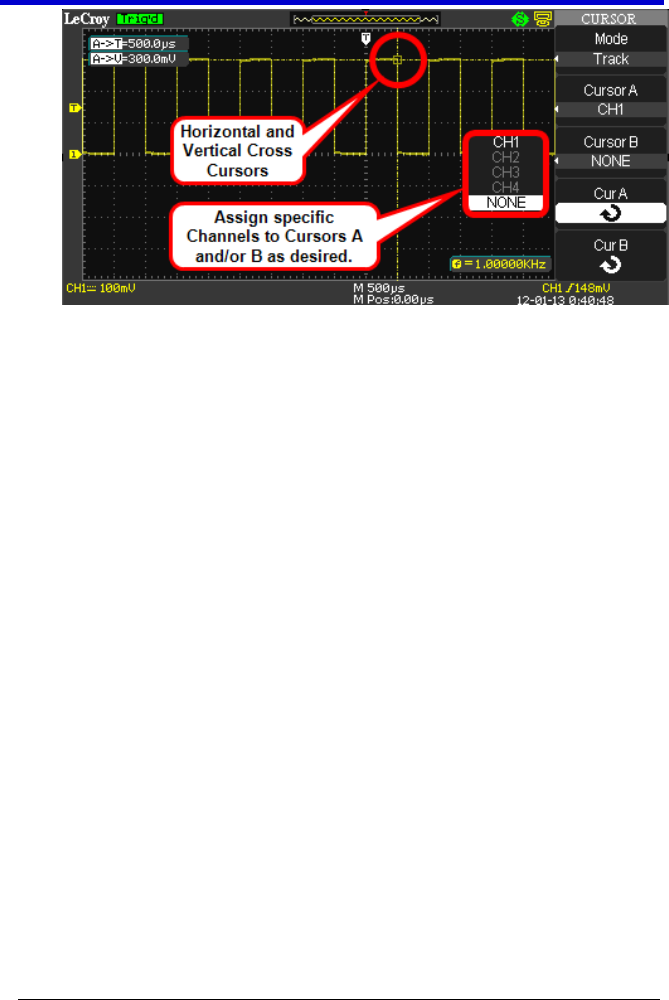

Shown in Track Cursor Mode
