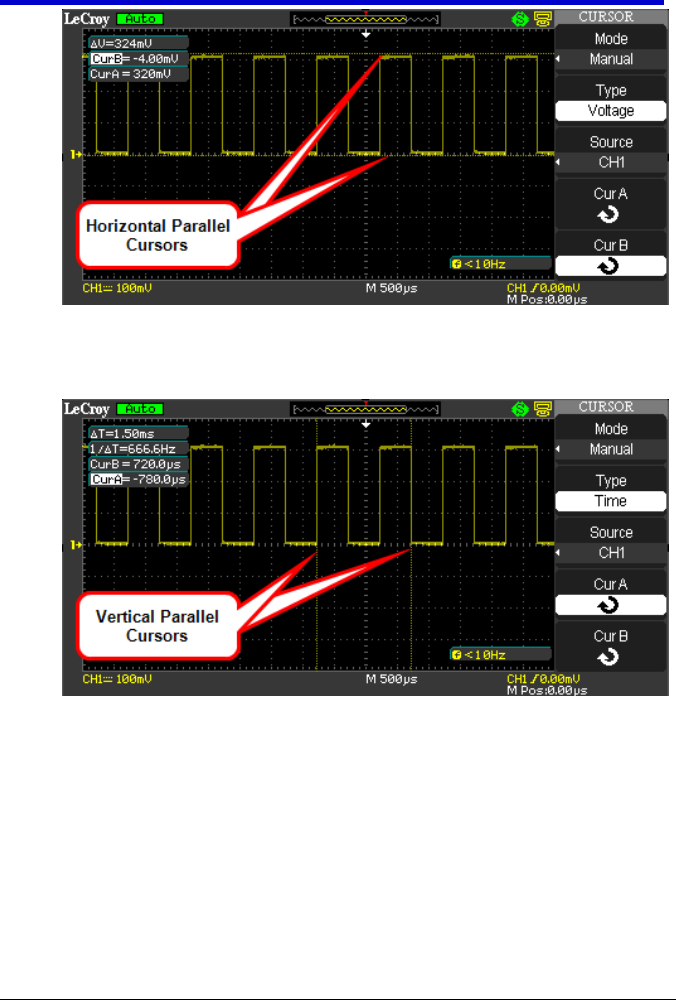

Voltage cursors appear as horizontal lines on the display and
measure the vertical parameters. Time cursors appear as vertical
lines on the display and measure the horizontal parameters.
Move cursors by pressing corresponding CurA, CurB option
buttons, and then using the Adjust front panel knob. Before using
cursors, you should make sure that you have set the signal source
as the channel for measuring.
2. Track - displays two cross-cursors. The cross-cursors set the
position on the waveform automatically.
