WaveAce 1000/2000
Viewing Waveforms

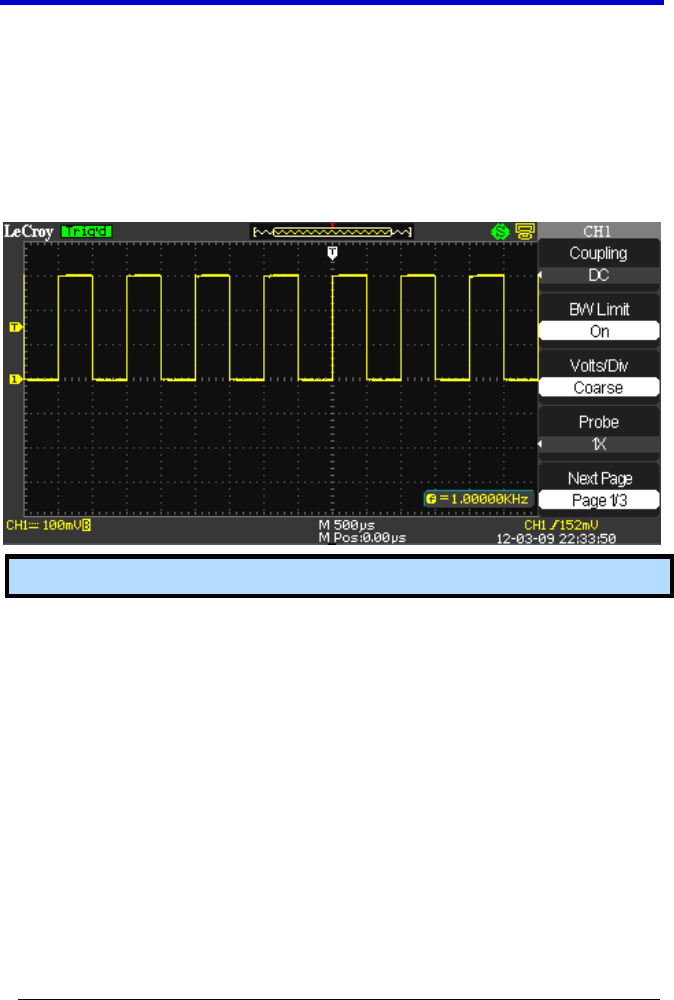

Turning On Traces
Turn on a channel trace by pressing the channel front panel button - CH1
or CH2 (or CH3 or 4 on 4 channel models). When you turn on a channel,
the Channel menu opens. You can then set up the vertical settings and
controls for the channel. When the channel is ON, the channel button is
lit.
Note: Turn a trace off by pressing the channel front panel button again.
Setting Up the Display
You can access the Display menu pressing the DISPLAY front panel
button.
