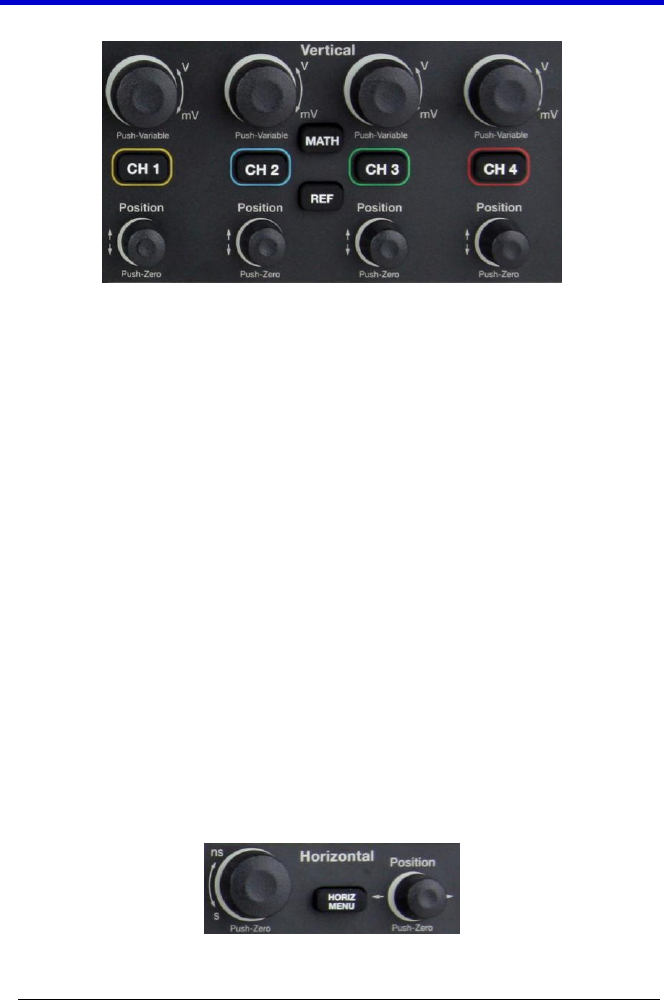

Vertical Controls
 Volts/Div knobs (CH1-4, pictured) - Turn to adjust the
volts/division setting (vertical gain) of the corresponding channel
(CH1-4). Press the knob to toggle between fine (variable) and
coarse (fixed) adjustments. See Vertical Settings and Channel
Controls (on page 27) for more information.
 Channel buttons (CH1-4) - Press a channel button (CH1-4) to turn
that channel ON or OFF and open the Channel menu for that
channel. You can use the Channel menu to set up a channel. When
the channel is ON, the channel button is lit.
 Vertical Position knobs (CH1-4) - Turn to adjust the vertical
position of the corresponding channel (CH1-4). Press to set the
vertical position to zero.
 REF - Press to display the Ref Wave menu. You can use this menu
to save and recall two reference waveforms (REFA and REFB) in
internal memory. See Creating Reference Waveforms (on page
59) for more information.
 MATH - Press to display the Math menu. The Math menu provides
numerous mathematical functions as explained in Waveform
Math (on page 55).
Horizontal Controls
 Horizontal Position knob - Turn to adjust the horizontal position
of all channels and math waveforms (the position of the trigger
