setting the pulse width, setting the video lineage adjusting the
upper and lower frequency limits, adjusting X and Y masks when
using the Pass/Fail function, etc. You can also turn the Adjust knob
to adjust the storage position of setups, waveforms, pictures when
saving/recalling and to select menu options.

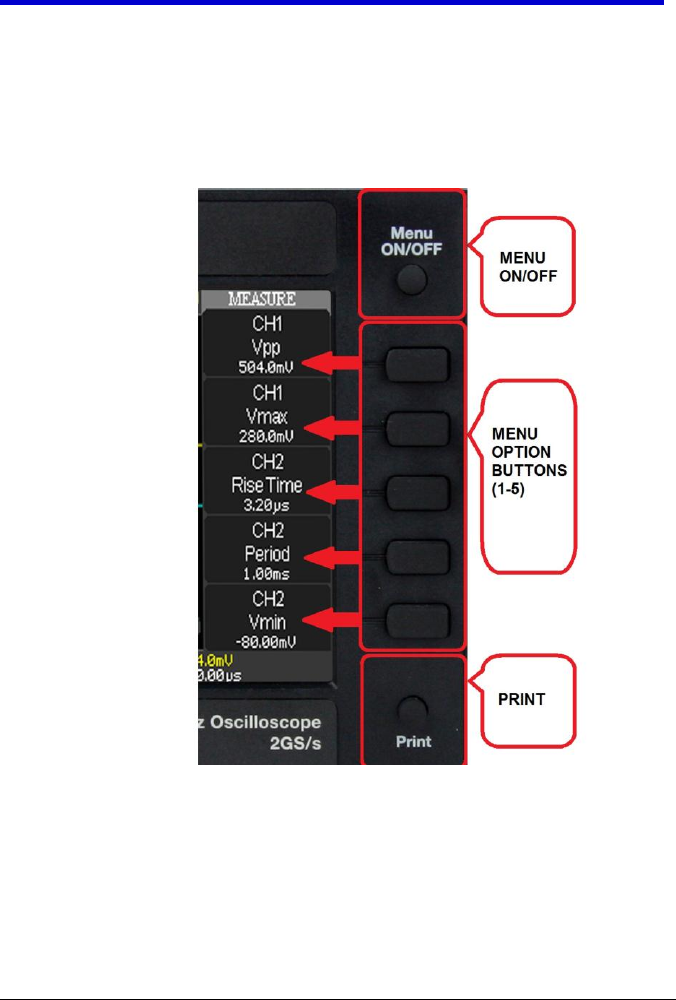

Menu Control, Option and Print Buttons
 MENU ON/OFF - Press to toggle the last-displayed menu On/Off.
 Menu Option buttons (1-5) - Press to choose menu options. Press
a menu option button adjacent to your selection.
 Print - Press to save the current waveform to an attached USB
memory device or print a picture (screen shot) to a USB-connected
printer. You can set up the save/print options using the
Save/Recall → Picture settings. For more information, refer to
Saving and Printing Waveform Pictures (on page 66).
