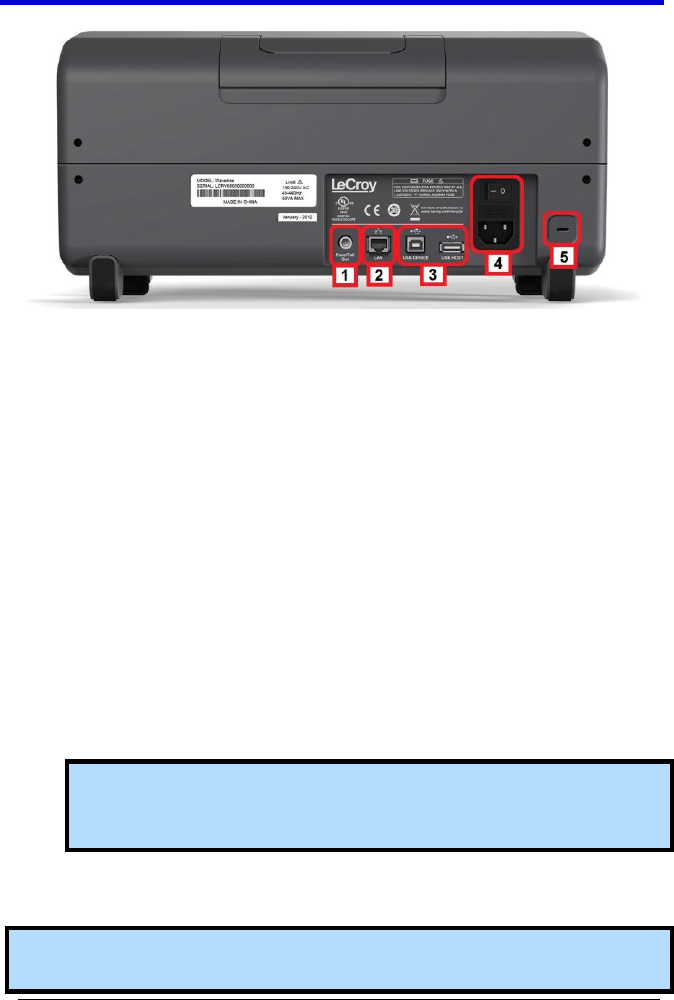

Back panel connection locations on the 4 Channel WaveAce Oscilloscope.
Previously numbered front panel buttons and knob locations on 4
Channel models correspond with the following explanations.
1. Pass/Fail Output
2. RJ-45 Connector
PLEASE NOTE THE FOLLOWING:
 Contact a system administrator when connecting to any
internal LAN.
 Use your WaveAce oscilloscope remotely by referring to
Using WaveStudio to Remotely Connect to your WaveAce
Oscilloscope (on page 102).
3. Rear USB (Type B and Type A, respectively) Connectors. Use the
Type B connector to attach a printer to your instrument. The Type
A connector is designated for memory stick use just like the one
on the Front Panel (on page 10).
Note: If you simultaneously connect separate memory sticks to both
the front and back Type A connectors, the WaveAce defaults to only
using the one attached to the front connector.
4. Power Shutoff Switch and Input Connector
5. Security Lock Receptacle
Note: The WaveAce 1000 model has a Power Input Connector and no Power
Shutoff Switch on the left side (facing) of the instrument instead of the back.
