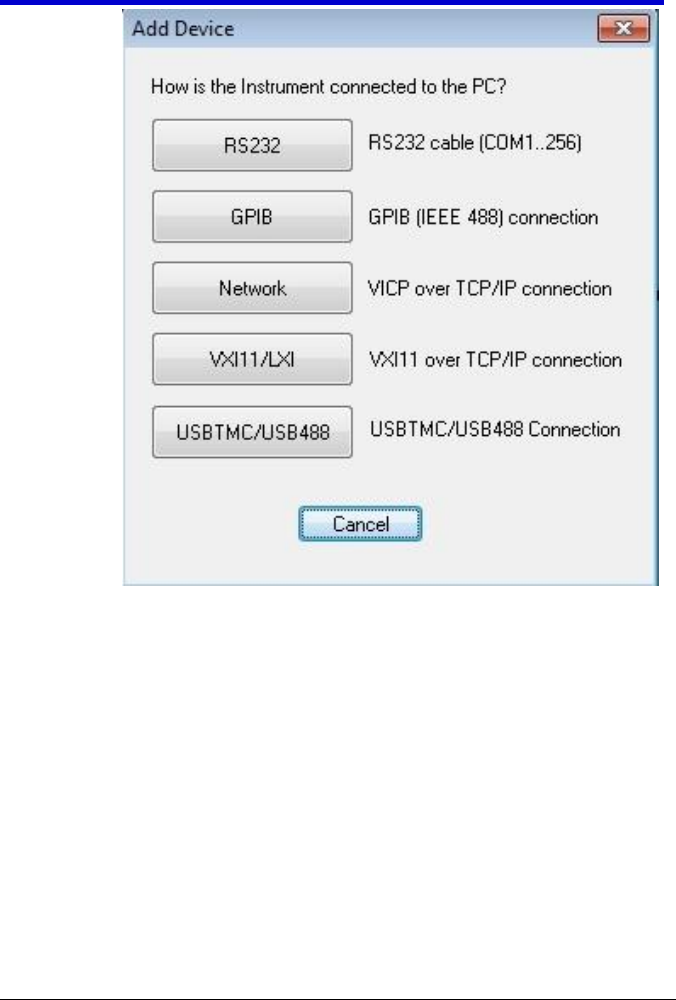

 Click either the Network (for WaveAce 2000 models with an
RJ-45 connector on the Back Panel) or USBTMC/USB488
(for either 1000/2000 models using the USB Type B
connector) device connection button. See Back and Side
Connections (on page 10) for more information.
After selecting your device connection, WaveStudio
completes the setup and the added device configuration is
shown on The Scope (Device) Explorer window.
With an established connection, the bottom half of the My
Scope (Device) Explorer window shows a tree including
items like Terminal, Front Panel, Scope Options, Traces,
Display Capture, Scope Setups, Mass Storage and
LabNotebook and is where most WaveStudio features are
utilized.
