WaveAce 1000/2000
2. Press the Play Mode option button to choose from Circular
(repeat) or Single time (play once, and then stop) modes.
3. Press the Interval option button and use the Adjust front panel
knob to dial in the desired interval between record frames for the
playback of your recorded waveforms.

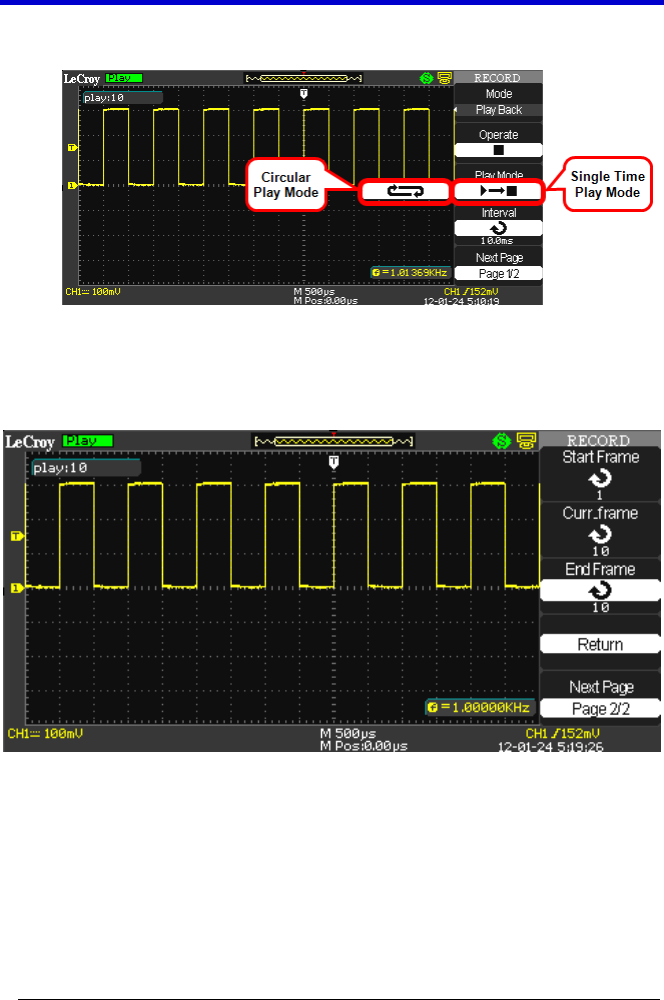

The Record Menu (with Mode Set to Play Back) - Page 2/2
1. After pressing Next Page from Page 1/2, press the Start Frame
option button and use the Adjust front panel knob to dial in the
specific frame of your recorded waveforms where you want to
start the playback.
2. Press the Curr_Frame option button and use the Adjust front
panel knob to dial in the exact frame of your recorded waveforms
you want showing on the display grid.
