WaveAce 1000/2000
The Record function operates in three Modes: Off, Record, and
Playback. As shown previous, no option button controls are available
when the Record's Mode is set to Off.

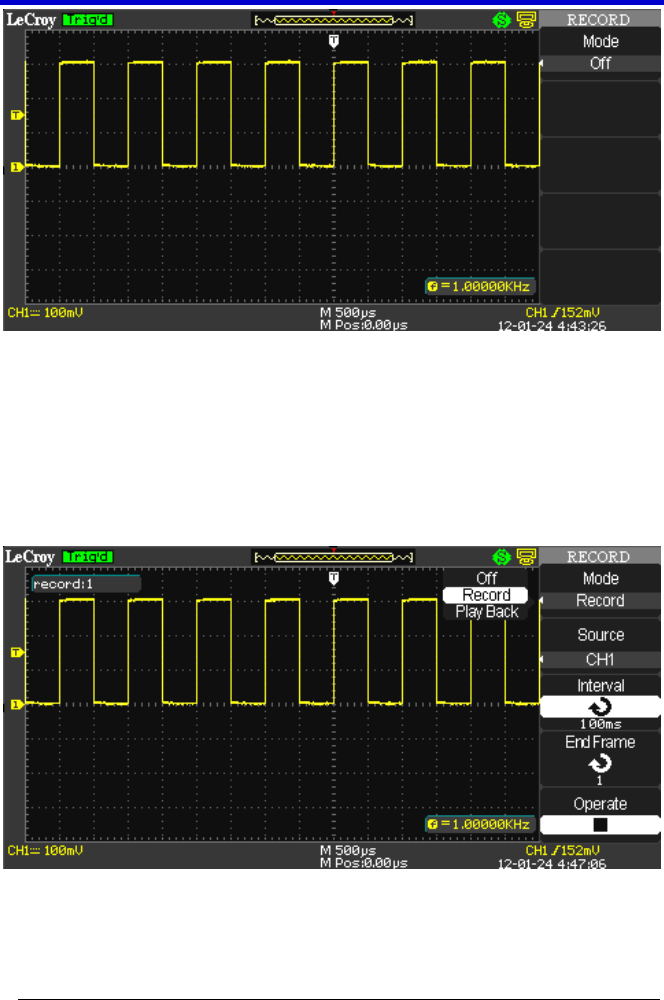

The Record Menu (with Mode Set to Record)
Press the Mode option button and select Record. The Record menu (with
Mode set to Record) is shown and contains the following option button
controls (in addition to Mode).
1. Press the Source option button to choose from CH1 and CH2 (also,
CH3 and CH4 on four channel versions) as the recorded signal
input.
