Using WaveStudio to Remotely Connect to your WaveAce
Oscilloscope
The following steps demonstrate how to use WaveStudio to remotely
connect to your WaveAce oscilloscope.
1. Make the hardware connection to your oscilloscope.
Connect a network cable to the RJ-45 connector on the back of
your oscilloscope as shown in Back and Side Connections (on page
10).
Note: Contact a system administrator when connecting to any internal
LAN.
2. Configure the remote control settings on the oscilloscope to
enable remote control.

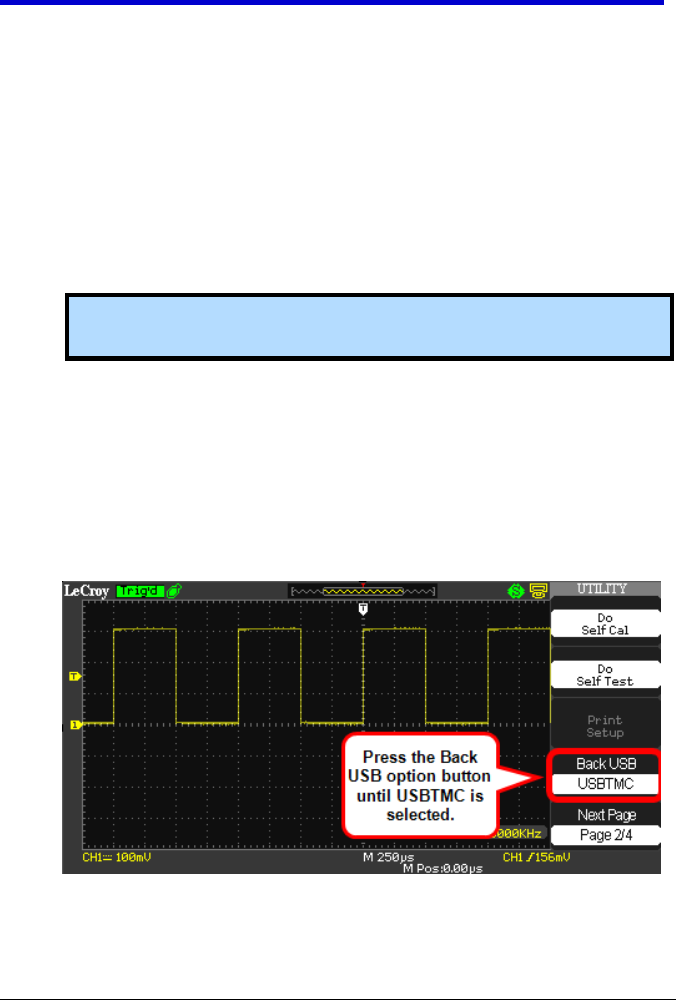

Press the UTILITY Front Panel (on page 10) button to display the
Utility menu, and then press the Next Page option button to
display page 2/4.
Now, press the Back USB option button until USBTMC is selected
and your oscilloscope is WaveStudio remote connection ready.
3. Download and install the National Instruments Measurement &
Automation Explorer on your PC.
