WaveAce 1000/2000

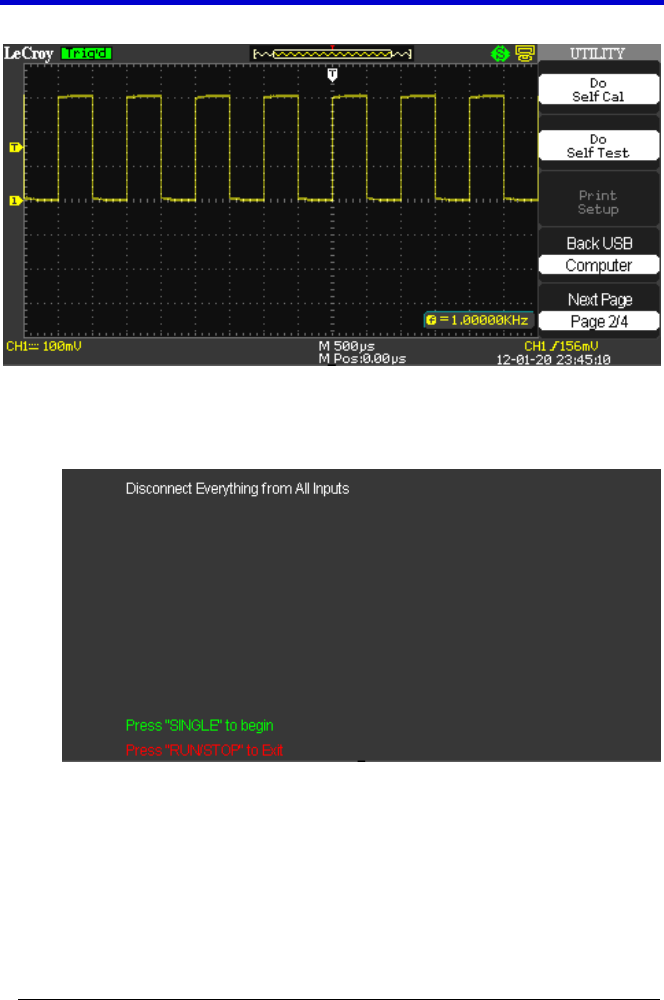

Utility Menu - Page 2/4
DO SELF CAL
1. Press the Do Self Cal option button to perform a self-calibration.
The Do Self Cal screen is shown.
2. As the screen indicates, disconnect anything plugged into input
connectors (except for the power cable) before pressing the
SINGLE Front Panel (on page 10) button and performing a self-
calibration. Press the RUN/STOP front panel button to exit the Do
Self Cal screen.
3. After pressing the SINGLE front panel button, a status bar shows
the self-calibration progress for each channel on the instrument.
