shows a Read Data Success! message on the lower part of
the grid display area.
Recalling Setups from a USB Memory Device
 Insert the USB memory device and press the Save To option
button to select File.
 Press the Recall option button and the SAVE ALL screen is
shown. See Using the SAVE ALL Screen (on page 76) to
continue recalling from your USB memory device.
Saving and Recalling Waveforms
You can quickly save waveforms in internal memory (up to 20
waveforms) or on a USB memory device (limited only by your USB
memory device capacity). You can display up to three waveforms at the
same time. You can easily recall these saved waveforms later.
Saving Waveforms
1. Display the waveform(s) you want to save and press the
Save/Recall front panel button. The SAVE/REC menu is shown.

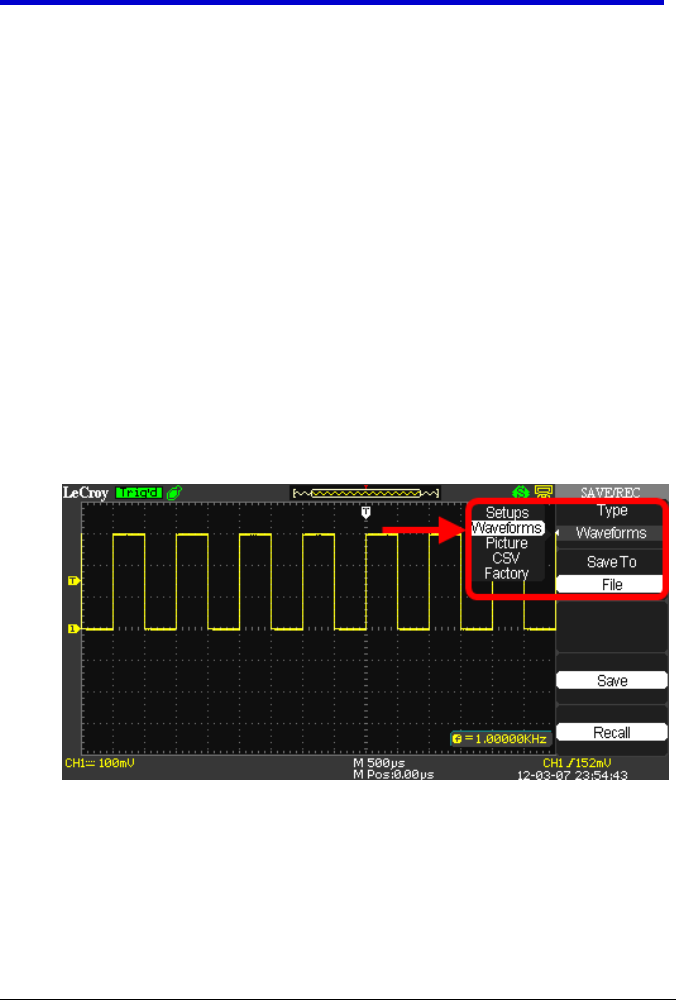

2. Press the Type option button and select Waveforms.
3. Save the waveform either to Device (meaning internal memory on
your WaveAce) or File (for storage on a USB memory device) using
the following methods.
Saving Waveforms to Internal Memory
 Press the Save To option button to select Device.
