Note: The previous screen-shot shows a math trace in Split Display
view.

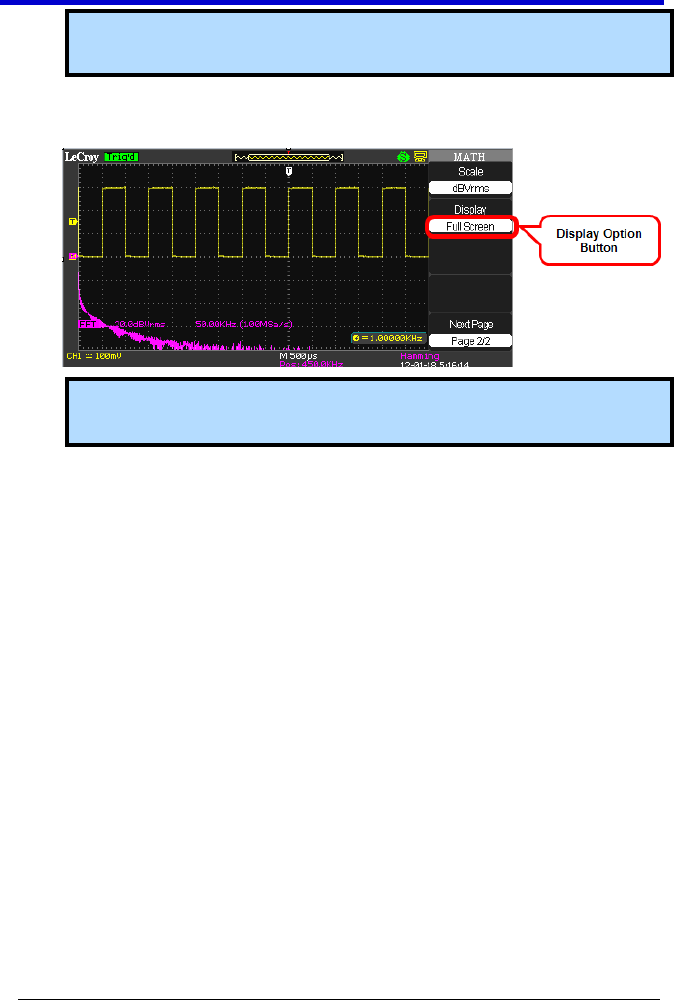

4. The Display option button allows you to choose either Split or Full
Screen for your FFT trace display.
Note: The previous screen-shot shows a math trace in Full Screen
Display view.
Creating Reference Waveforms
Two reference waveforms (REFA and REFB) can be created and saved
into internal memory on the oscilloscope.
Reference waveforms can be saved and recalled from volatile memory
for quick comparative analysis.
PLEASE NOTE THE FOLLOWING:
 When reference waveforms are recalled from internal memory,
their horizontal position and scale cannot be adjusted.
 However, the oscilloscope does display the horizontal and vertical
scales of the recalled reference waveforms at the bottom of the
display.
 X-Y mode waveforms are not stored as reference waveforms.
Creating Reference Waveforms
1. Press the REF front panel button. The REF WAV menu opens.
