WaveAce 1000/2000
Press corresponding option buttons and make selections as desired.

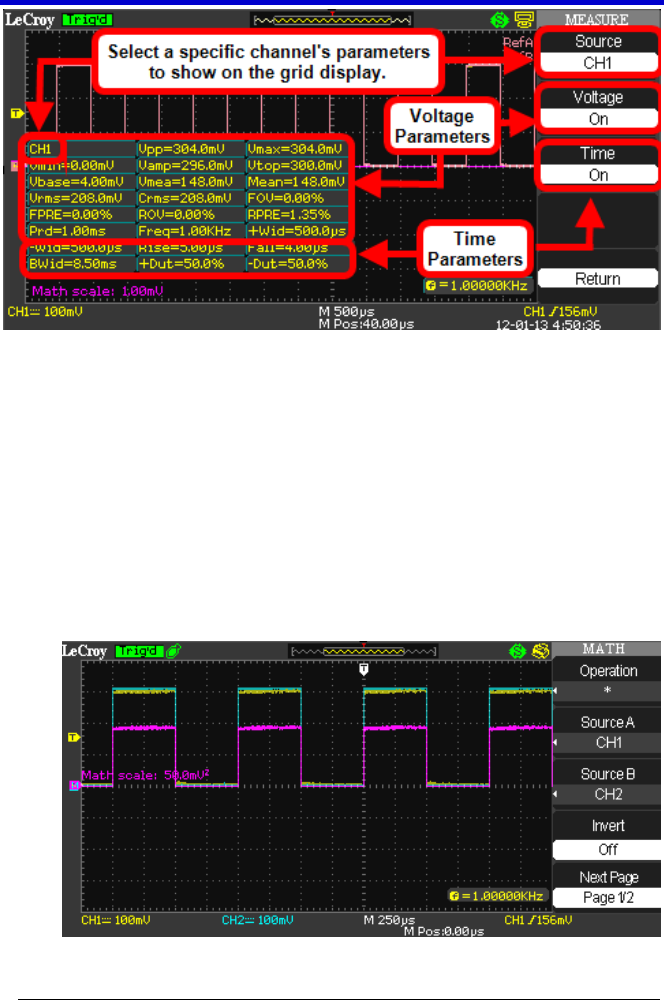

Waveform Math
Standard math functions include addition, subtraction, multiplication,
division, and FFT. For more information on FFT, see the FFT Spectrum
Analyzer (on page 57) section. Press the MATH front panel button in the
Vertical Control group to display the Math menu.
Math on 2 Channel WaveAce Models
1. Press the Operation option button and select a math operator +, -,
*, /, or FFT Spectrum Analyzer (on page 57).
