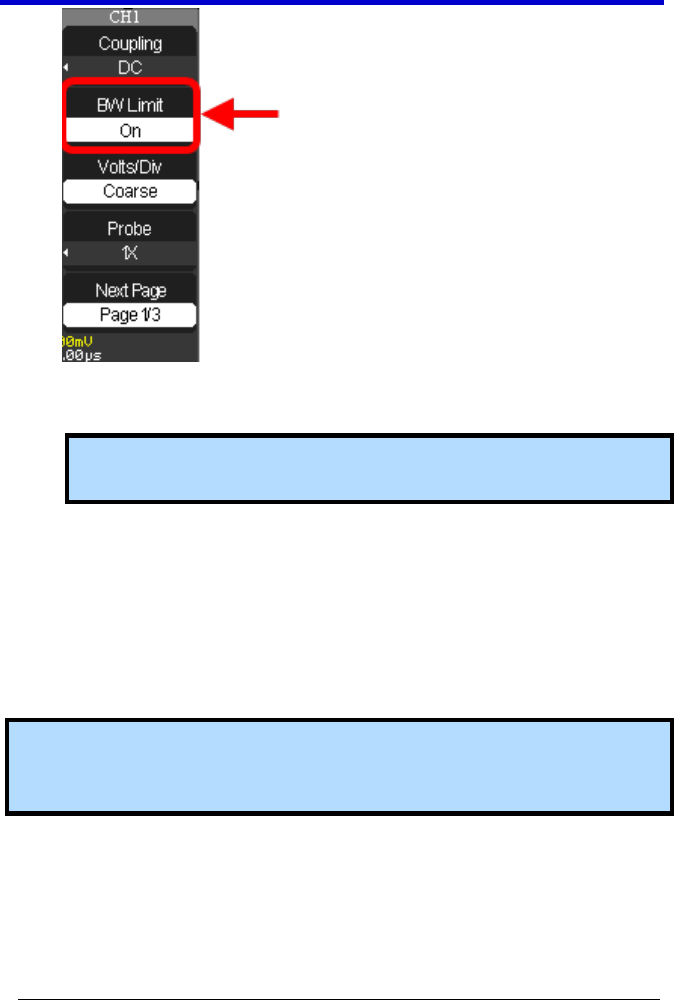

2. Now, press the BW Limit option button on page 1/2 of the channel
menu, and then select On.
Note: A highlighted B icon is shown at the lower-left of the display as
described in Understanding Display Information (on page 24).
Adjusting Sensitivity
You can set the sensitivity of the Volts/Div using the front panel knob.
When the sensitivity is Coarse (or fixed - the default setting), the gain
adjustment is set to 1-2-5 increments from 2 mV/div, 5 mV/div, 10
mV/div to 5 V/div. Pushing the Volts/Div knob sets the sensitivity to Fine
(variable), and changes the resolution to small steps between the coarse
settings.
Note: The vertical scale readout displays the actual Volts/Div setting when
Fine(variable) is selected. Changing the setting to Coarse (fixed) does not
change the vertical scale until the Volts/Div control is adjusted.
1. Set the sensitivity of the Volts/Div front panel knob by turning on
the specific channel. Press the desired channel button - CH1 or
CH2 (or CH3 or 4 on 4 channel models).
