Hardware
Front Panel
The WaveAce 1000/2000 Series oscilloscopes provide an easy-to-use
front panel. The control buttons are logically grouped.
Note: While the following picture is from the 4 Channel version, besides the
extra channels, button and knob locations are essentially the same on the 2
Channel model.

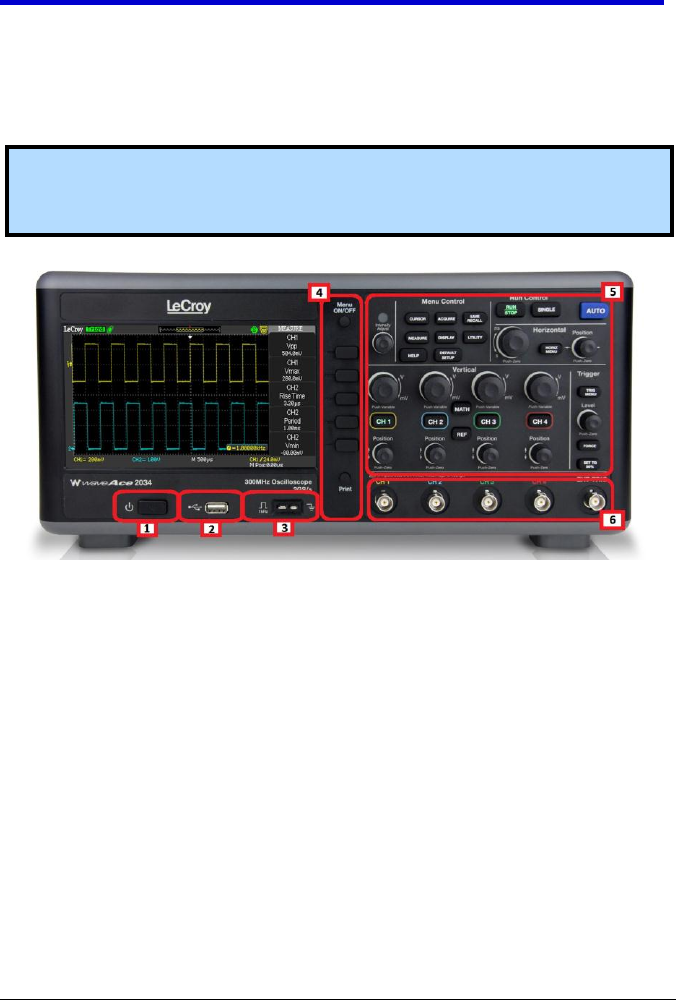

Front panel buttons and knob locations on 4 Channel WaveAce Oscilloscopes. Layout is
very similar on 2 Channel models
Previously numbered front panel buttons and knob locations correspond
with the following explanations.
1. Power Button
2. Front USB (Type A) Connector
3. 1 KHz and Ground Probe Connectors
4. Menu On/Off, Menu Option, and Print Buttons
5. Front Panel Controls
6. Channel and External Trigger Input Connectors
Back and Side Connections
The following image shows back panel connection locations for the 4
Channel models.
