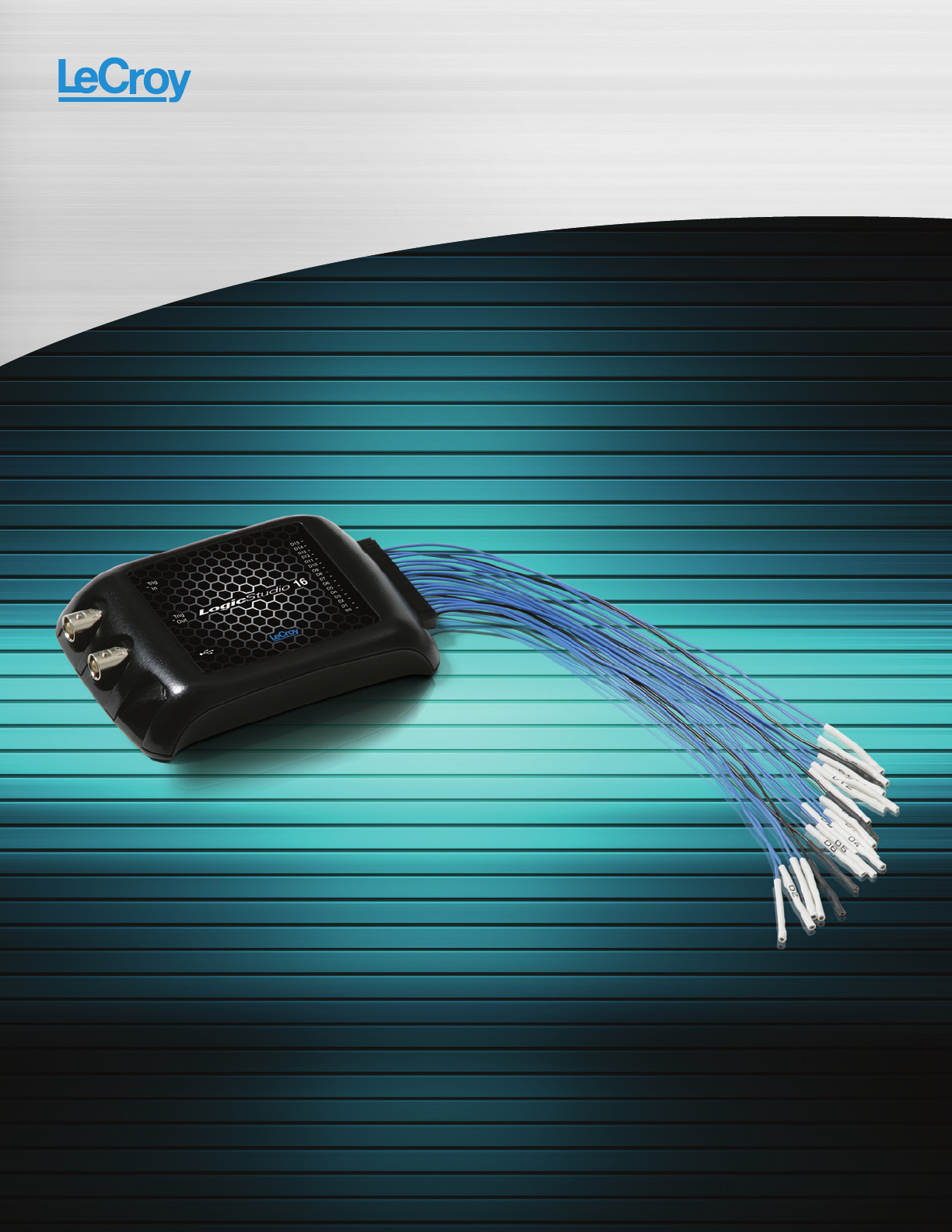

LogicStudio™ USB Logic Analyzer Faster, Smarter Debug
ADVANCED FEATURES, SIMPLE DEBUG Key Features • 100 MHz, 1 GS/s, 16 channels • I2C, SPI, UART protocol analysis • History mode • Timing cursors • Oscilloscope connectivity • Waveform magnifier • Powerful trigger environment • Communicate with colleagues Logic analyzers are known to be slow, complicated and expensive but LogicStudio™ changes all this by delivering a powerful feature set, high-performance hardware and an intuitive point and click user-interface.
Easy Channel Setup Quickly configure the inputs, Serial Data Protocol Decode and Trigger I2C, SPI and UART Digital, Serial, Analog Connect a WaveJet 300A to the signal type, name and the color Decode on the fly for all 16 channels from serial data busses and view and turn the PC into a Mixed Signal the signals screen or change a the appropriate clock and data Oscilloscope displaying digital, serial single line on the fly from the main signals directly below the protocol and analog signals simu
POINT, CLICK, DEBUG 9 6 LogicStudio is fast! Waveforms update quickly and panning or zooming is extremely responsive. Download the software and experience it yourself. The software interface is modern and intuitive creating a new logic analyzer experience. LogicStudio is intuitive and easy to operate with friendly left-click and right-click controls plus all buttons are on the main screen, no complicated menus to navigate. 1 7 8 1.
2 8 5 5. Trigger Modes Oscilloscope trigger modes of Auto, Normal and Single help ensure what you need to see is always on the display. 6. Save and Recall Save screenshots to share with others or save waveforms and setups for recalling later. 7. Add/Remove/Hide Waveforms One click to add a new waveform, one click to remove it, right-click to hide it for later viewing. 8. Waveform Display and Scaling View waveforms stacked on top of each other or overlay one waveform on top of another.
DIGITAL, SERIAL, ANALOG IN ONE PLACE In many situations looking at only digital lines does not give the whole picture and more tools are necessary. The LogicStudio software solves this problem by supporting the LeCroy WaveJet 300A oscilloscope turning the PC into a mixed signal solution. Once the WaveJet is connected, digital, serial and analog waveforms can be viewed simultaneously in one place saving a lot of time and enabling faster debug.
SPECIFICATIONS AND ORDERING INFORMATION Specifications LogicStudio 16 Input Channels Sample Rate Minimum Detectable Pulse Width Memory Trigger Types Threshold Selections User-defined Threshold Range Maximum Survivable Input Voltage Threshold Accuracy Maximum Input Dynamic Range Minimum Voltage Swing Input Impedance Channel-to-Channel Skew Trigger Resolution Host Port Size 16 1 GS/s on 8 Ch, 500 MS/s on 16 Ch 3.75 ns 40 kpts on 8 Ch, 20 kpts on 16 Ch Edge, pattern, pulse width, pattern width.
1-800-5-LeCroy www.lecroy.com Local sales offices are located throughout the world. Visit our website to find the most convenient location. © 2010 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change. without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
