Mounting procedure
TCU 1.2
Ref : C3140690010
Version : A1
When TCU 1.2 and ECU or EBS are connected to a same CAN network, they must share the
same ground.

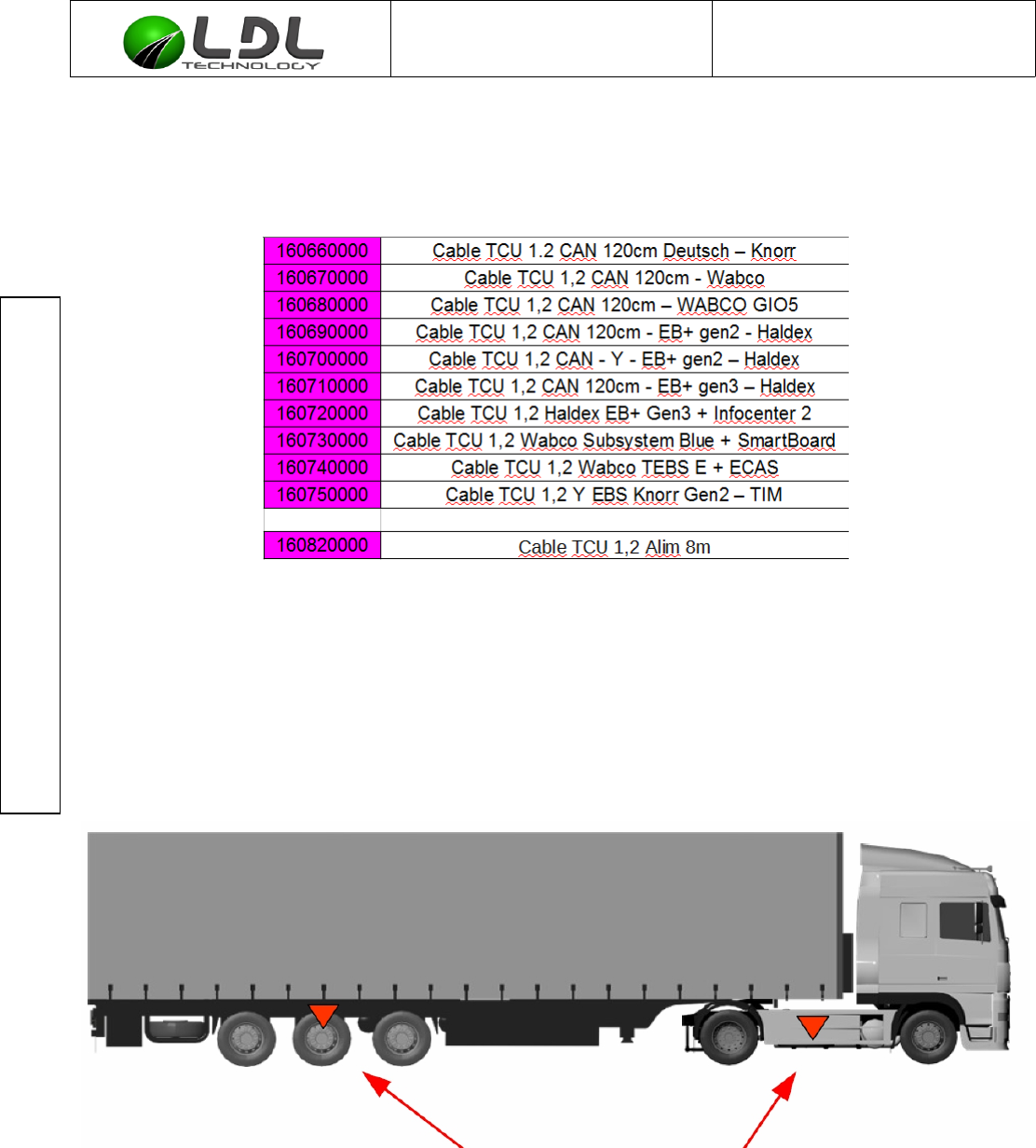

LDL Technology can provide the wiring harness ; see table below : Table is not exhaustive ,ask
to LDL for details
TCU 1.2 connected to LDL harness are IP69K & IP 68.
7. TCU 1.2 LOCATING RECOMMENDATIONS
The TCU 1.2 must be fixed horizontally and upside down (Vent side facing the ground):
The TCU 1.2 must be free from any metallic shield in the Z direction.
The antenna should be cleared as possible to optimize RF communication and reduce areas of
non-receipt.
There must be a free area of minimum 5cm wide around the TCU in all directions.
TCU 1.2 must not be exposed to direct gritting.
