Mounting procedure
TCU 1.2
Ref : C3140690010
Version : A1
Each TCU 1.2 must be at a central point between the wheels that it has to receive, and aligned
on the vehicle axis. Distance between TCU 1.2 and WUS would not exceed 3 meters.
When trailer is equipped with an EBS, TCU 1.2 bracket should be fixed to EBS bracket.

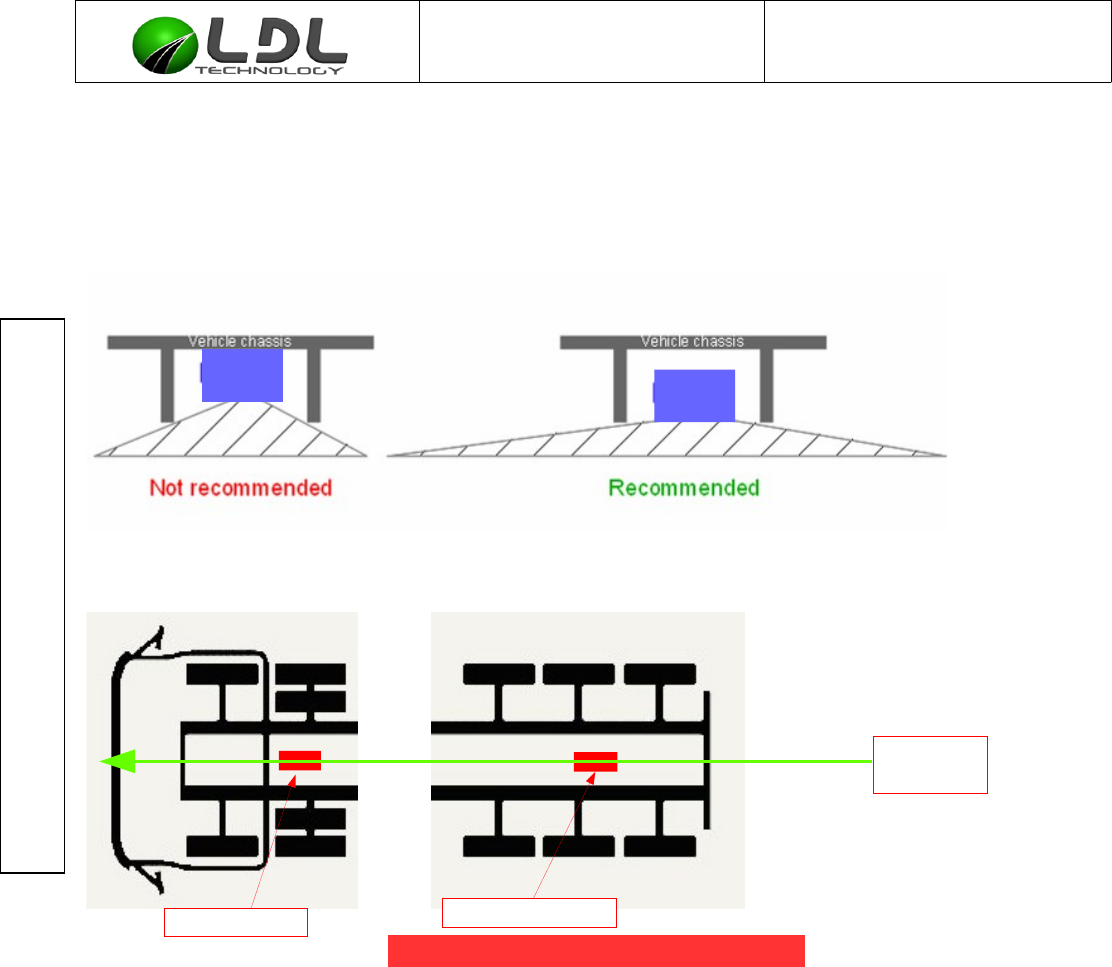

MANDATORY TCU 1.2 location:
C3140690010-A1-TCU12_Mounting_Specification.odt LDL Technology SAS – Toulouse – France 10/ 13
Copyrights 2016
Truck TCU 12
Trailer TCU 12
Vehicle
axis
TCU 12
TCU 12
